622Mbps 1 x 9 SM Transceiver Module
Description
622Mbps 1 x 9 SM Transceiver Module
Product Description
F-tone’s FTTR-xx06-xxx series of transceiver modules are the perfect solution for high-speed communication networks.The transceiver modules support data rates up to 622Mbps. These modules are fully compliant with the Multi-sourced 1x9 protocol.
The transceiver modules supplies the Differential PECL of 3.3V, 5V, 3.3V/5.0V Voltage and provide the system designer with products to implement a range of FDDI and ATM (Asynchronous Transfer Mode) designs at the 622Mbps rate and SONET/OC-12, SDH/STM-4 for Telecommunication.Business level transceiver module which operating at 0℃ to 70℃ and Industry level which operating extended temperature as -40℃ to +85℃ for available.
Product Features
● Multi-sourced 1 x 9 pin packaged
● 1310nm FP or 1550nm DFB Laser Transmitter
● SC Duplex receptacle
● Up to100Km with 9/125μm SMF
● Single 3.3V, 5V power supply
● PECL signal input and output
● Wave solderable and washable with process plug inserted
● Two temperature ranges:
— 0°C to +70°C
— -40°C to +85°C for industry level
Application
● ATM 155Mbps
● SONET/SDH
● 100Mbps Ethernet Equipments
● Other Optic Link

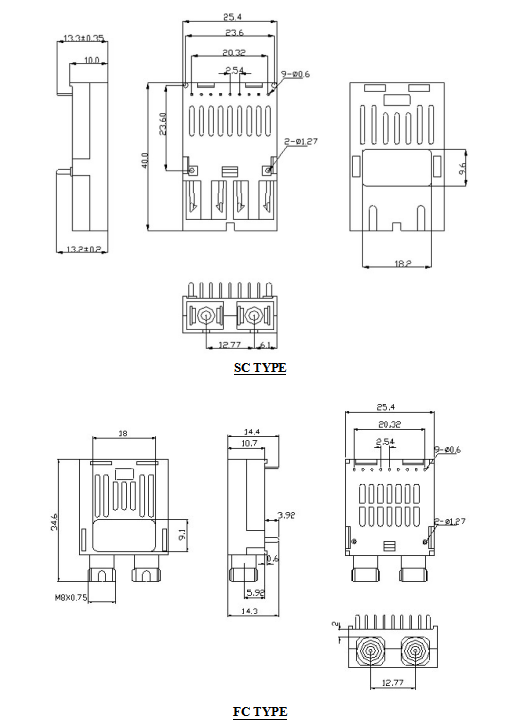

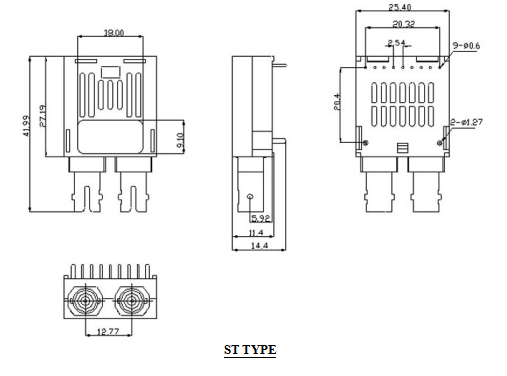

Module Outline Drawing

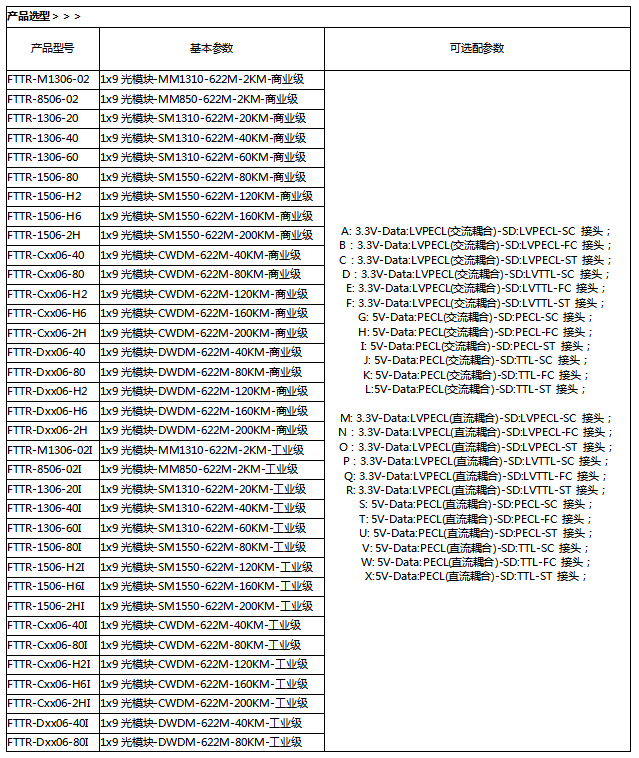

Ordering information
注：本产品有全国产化型号可选
本产品为光模块1x9系列，仅展示部分参数，如有需要，请联系大宝娱乐。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
