155Mbps Bi-Di Transceiver Module

Product Description
F-tone Networks’s FTTR-Bxx03-xxx series of transceiver modules are the perfect solution for High-speed communication networks. These modules are fully compliant with the Multi-sourced 1x9 protocol.
The transceiver module supplies the Differential PECL of 3.3/5.0 Voltage and provide the system designer with products to implement a range of FDDI and ATM designs at the 155Mbps rate and SONET/OC-3¡¢SDH/STM-1 for Telecommunication.
The FTTR-Bxx03-xxx series is high performance module for single fiber communications by using 1310/1550 nm transmitter and 1550/1310 nm receiver. The transmitter section uses a multiple quantum well laser and is a class 1 laser compliant according to International Safety Standard IEC-825. The receiver section uses an integrated 1550 nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. A PECL logic interface simplifies interface to external circuitry.

Product Features
¡ñ Single Fiber Bi-Directional Transceiver
¡ñ 1310nm FP or 1550nm FP (or DFB) Laser Transmitter
¡ñ Up to 80Km with 9/125μm SM
¡ñ Industry Standard 1 x 9 Footprint
¡ñ Single 3.3V, 5V, 3.3V/5.0V power supply
¡ñ SC/FC/ST single receptacle or Pigtail SC/PC, ST/PC, FC/PC optional
¡ñ PECL Differential Inputs and Outputs
¡ñ Wave Solderable and Aqueous Washable
¡ñ Class 1 Laser International Safety Standard IEC 825 Compliant
¡ñ Optical Isolation > 30 dB
¡ñ Cross Talk < -40 dB
¡ñ Two temperature ranges:
— 0°C to +70°C
— -40°C to +85°C for industry level

Application
¡ñ WDM 155Mb/s Links
¡ñ SONET/SDH Equipment Interconnect
¡ñ Fast Ethernet 100 Mb/s Links

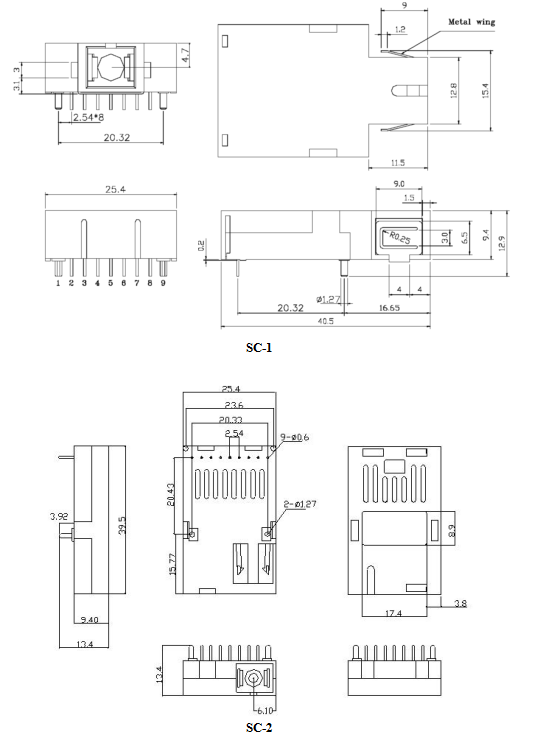

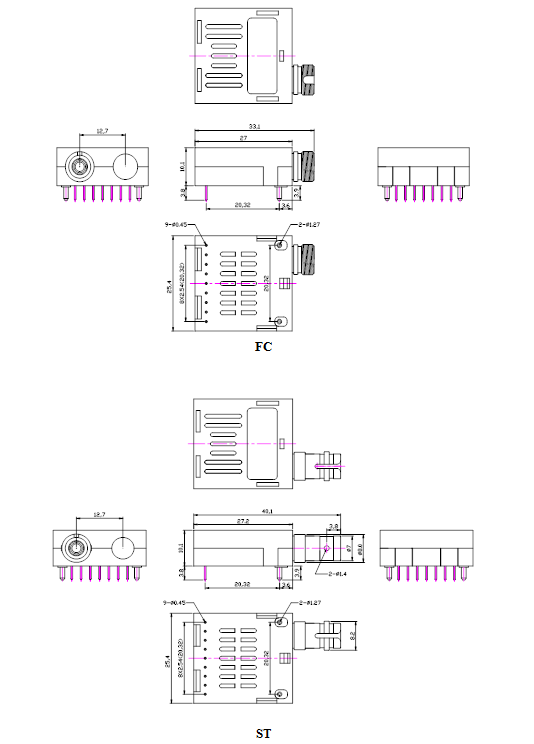

Module Outline Drawing

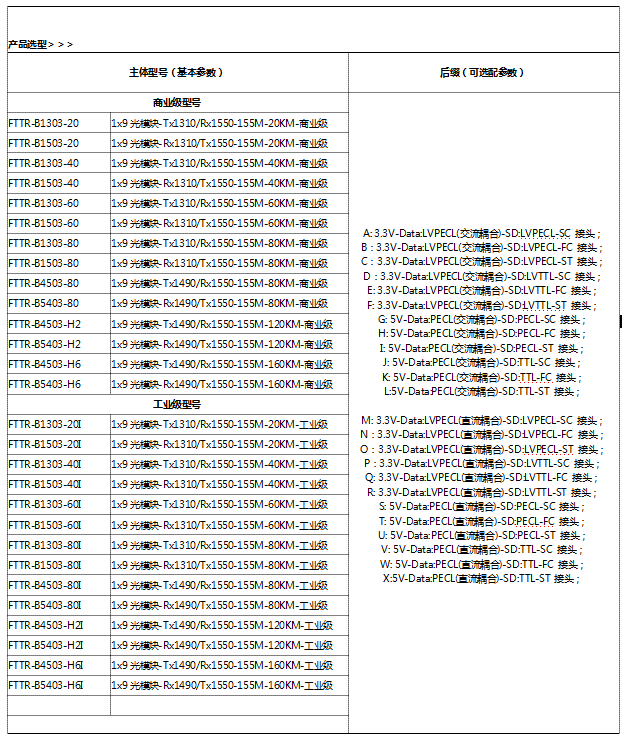

Ordering information
