155Mbps 1 x 9 MM Transceiver Module

Product Description
F-tone’s FTTR-BMxx03-02xx series of transceiver modules are the perfect solution for high-speed communication networks.The transceiver modules support data rates up to 155Mbps. These modules are fully compliant with the Multi-sourced 1x9 protocol.
The transceiver module supplies the Differential PECL of 3.3V, 5V, 3.3V/5.0V Voltage and provides the system designer with products to implement a range of FDDI and ATM designs at the 155Mbps rate and SONET/OC-3, SDH/STM-1 for Telecommunication.Commerce level transceiver module which operating at 0¡æ to 70¡æ for available.

Product Features
¡ñ Multi-sourced 1 x 9 pin packaged
¡ñ 1310nm FP, 1550nm FP Laser Transmitter
¡ñ SC /FC/ST single receptacle
¡ñ Up to 5Km with 62.5/125μm MMF
¡ñ Single 3.3V, 5V, 3.3V/5.0V power supply
¡ñ PECL signal input and output
¡ñ Wave solderable and washable with process plug inserted
¡ñ Operating case temperature:
     Standard : 0 to +70°C
     Industrial : -40 to +85°C

Application
¡ñ ATM equipments
¡ñ SONET/OC-3¡¢SDH/STM-1 equipments
¡ñ 100Mbps Fast Ethernet equipments

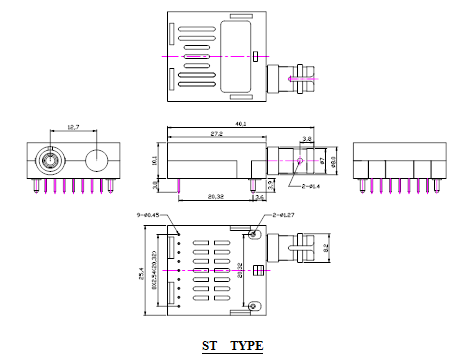

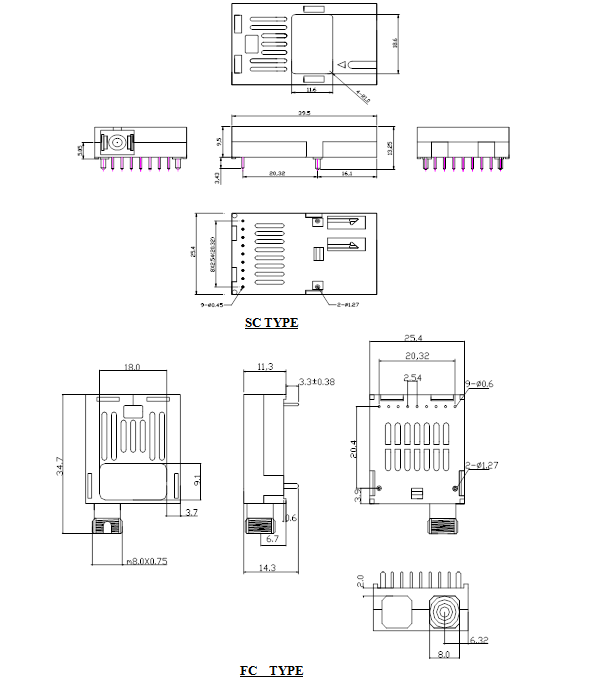

Module Outline Drawing

Ordering information

×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡

±¾²úƷΪ¹âÄ£¿é1x9ϵÁÐ£¬½öչʾ²¿·Ö²ÎÊý£¬ÈçÓÐÐèÒª£¬ÇëÁªÏµ´ó±¦ÓéÀÖ¡£

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
