1×9 155Mbps BIDI CWDM Transceiver Module
Description
1×9 155Mbps BIDI CWDM Transceiver Module
Product Description
F-tone’s FTTR-BCxx03-xxx series of transceiver modules are the perfect solution for low -speed communication networks.These transceiver modules support data rates up to 200Mbps. The module is fully compliant with the Multi-sourced 1x9 protocol.
These single fiber Bi-Directional transceiver modules provides the system designer with products to implement a range of FDDI and ATM designs at the 100Mbps/125Mbps rate and SONET/OC-3, SDH/STM-1 for Telecommunication.
Product Features
● CWDM Laser Diode Transmitter
● Up to120 Km on 9/125μm SMF
● 3.3V, 5V, 3.3V/5.0V power supply
● SC/ST/FC single optical interface
● (LV)PECL Differential Inputs and Outputs and (LV)PECL or( LV)TTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard：0 to +70℃) or (Industrial： -40°C to +85°C)
Application
● ATM 155Mbps
● SONET/SDH
● 100Mbps Ethernet Equipments
● Other Optic Link
Module Outline Drawing

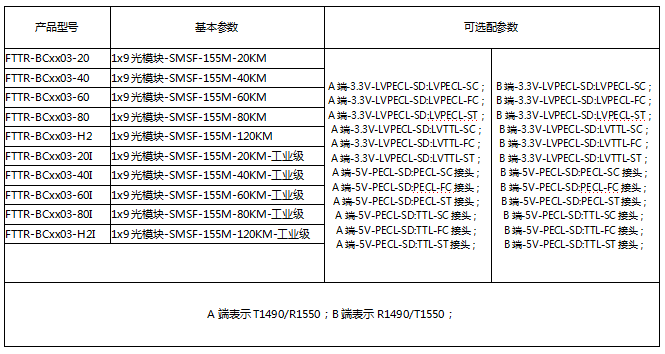

Ordering information
注：本产品有全国产化型号可选
本产品为光�？�1x9系列，仅展示部分参数，如有需要，请联系大宝娱乐 。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
