155Mbps 1¨w9 SM Transceiver Module

Product Description
F-tone’s FTTR-1X03 series of transceiver modules are the perfect solution for high-speed communication networks. The transceiver modules support data rates up to 155Mbps. These modules are fully compliant with the Multi-sourced 1x9 protocol.
The transceiver module supplies the Differential PECL of 3.3V, 5V, 3.3V/5.0V Voltage and provides the system designer with products to implement a range of FDDI and ATM designs
at the 100Mbps / 125Mbps rate and SONET/OC-3, SDH/STM-1 for Telecommunication. Commerce level transceiver module which operating at 0¡æ to 70¡æ and Industry level which operating extended temperature as -40¡æ to +85¡æ for available.

Product Features
¡ñ Multi-sourced 1 x 9 pin packaged
¡ñ 1310nm FP or 1550nm FP /DFB Laser Transmitter
¡ñ SC /FC/ST single receptacle or Pigtail SC/PC, ST/PC, FC/PC optional
¡ñ Up to 120Km with 9/125µm SMF
¡ñ Single 3.3V, 5V, 3.3V/5.0V power supply
¡ñ PECL signal input and output
¡ñ Wave solderable and washable with process plug inserted
¡ñ Two temperature ranges:
— 0°C to +70°C
— -40°C to +85°C for industry level

Application
¡ñ ATM equipments
¡ñ SONET/OC-3¡¢SDH/STM-1 equipments
¡ñ 100Mbps Fast Ethernet equipments

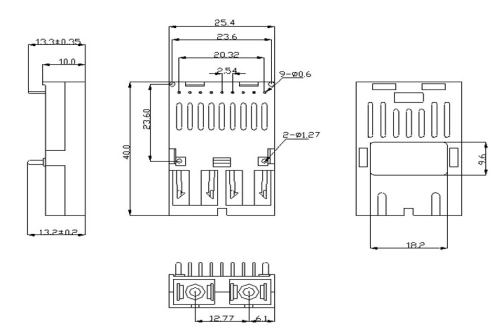

Module Outline Drawing-SC

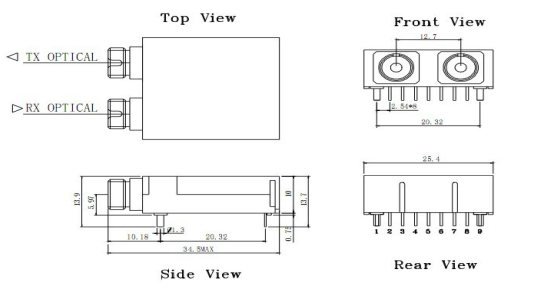

Module Outline Drawing-FC

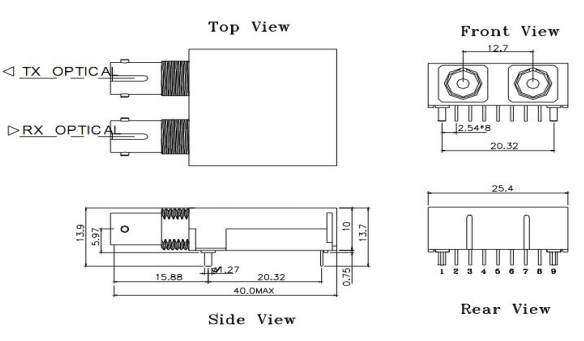

Module Outline Drawing-ST

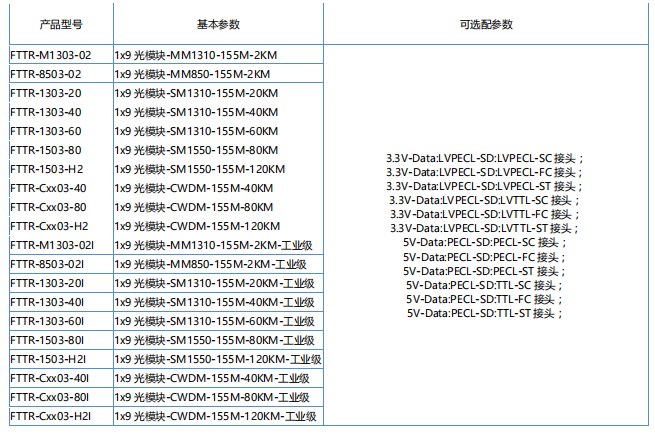

²úÆ·Ñ¡ÐÍ

×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡

±¾²úƷΪ¹âÄ£¿é1x9ϵÁУ¬½öչʾ²¿·Ö²ÎÊý£¬ÈçÓÐÐèÒª£¬ÇëÁªÏµ´ó±¦ÓéÀÖ¡£

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
