155Mb/s PECL 单模双纤光收发一体�？�
Description
155Mb/s PECL 单模双纤光收发一体�？�
特点：
● SC/FC/ST 或尾纤型光接口 ，单模双纤光收发一体�？�
● +3.3V /+5V 供电
● 接口电平兼容标准 PECL 电平
● 标准 1×9 管脚封装 ，引脚配置与 Multisource 协议兼容
● 发射器件可选用 1310nm 的 FP 激光器或 1550 DFB 激光器
● 接收接纳平面结构 InGaAsP PIN 探测器
Features：
● SC/FC/ST receptacle optical interface and pigtail optical interface
● Single mode Duplex fibers optical transceiver
● +3.3V /+5V Power Supply
● Standard PECL data output with signal detect indication
● Multi-sourced 1×9 package
● High quality 1310nm MQW-FP LD/ 1550nm DFB LD
● Receiver has a planner InGaAsP PIN
应用：
● 155Mb/s 及以下速率的光纤传输系统 ，如 SDH 系统、数字视频光端机等 。
Applications
● Applied to optical fiber transmission systems,such as SDH and digital video optical terminal devices with bit rate up to 155Mbps

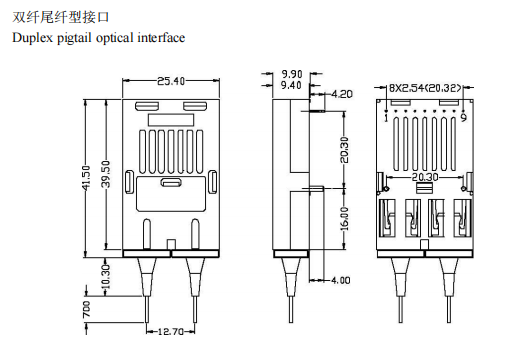

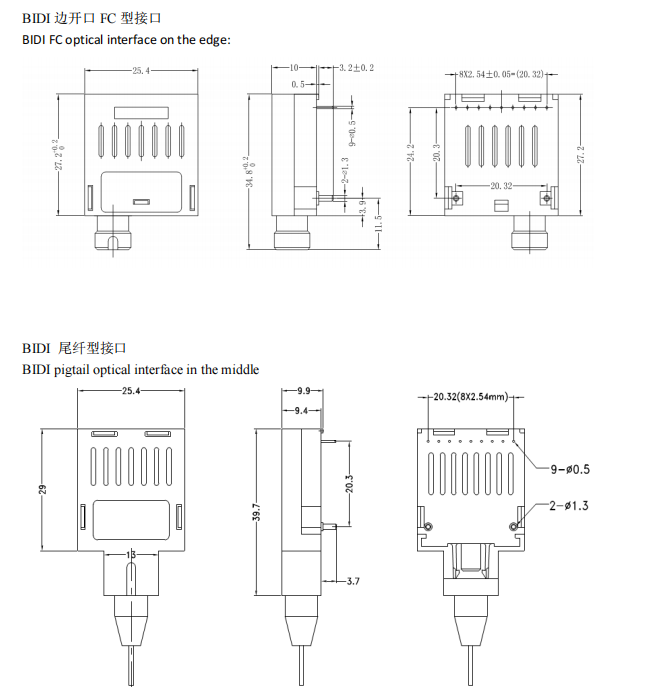

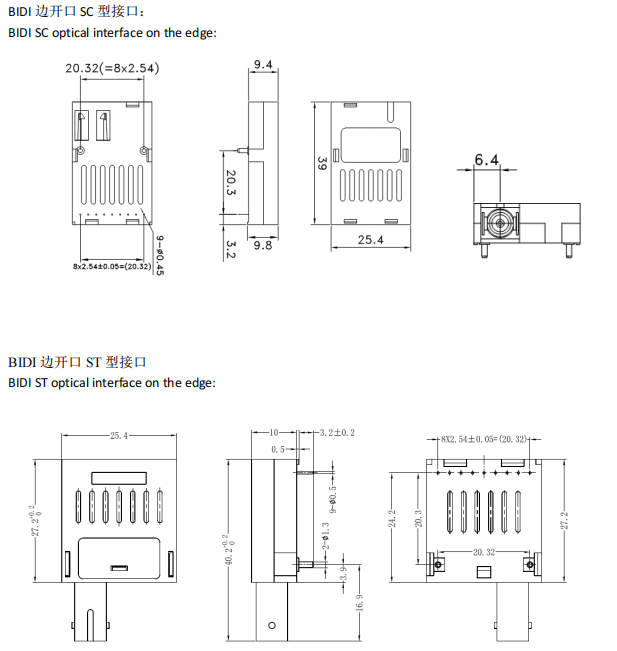

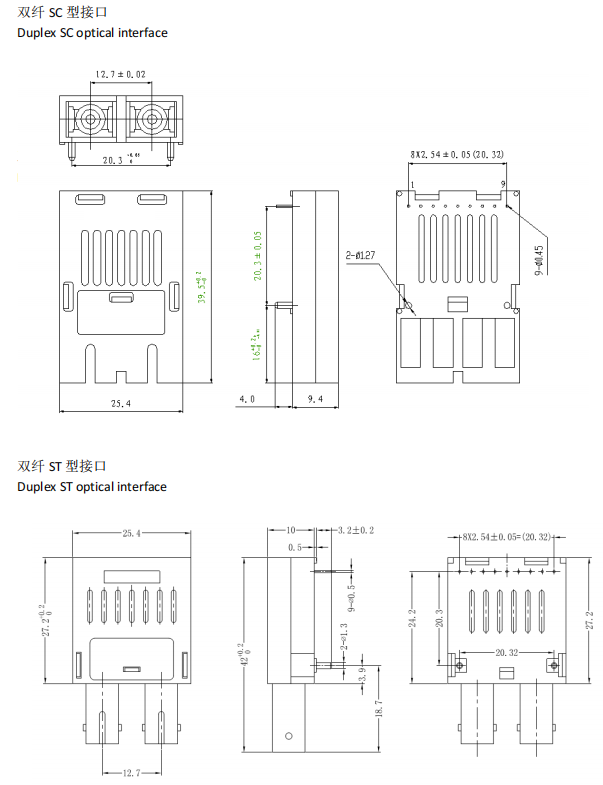

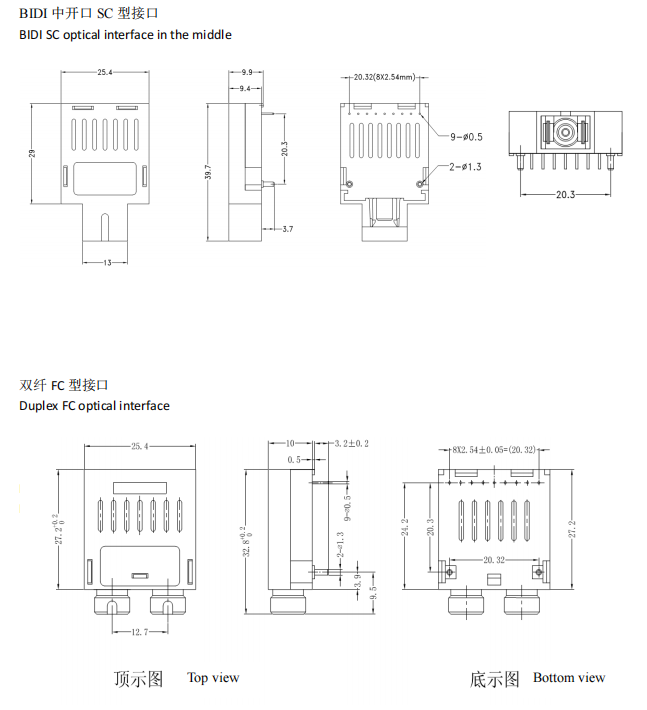

外形尺寸及接口界说
Dimension and optical interface

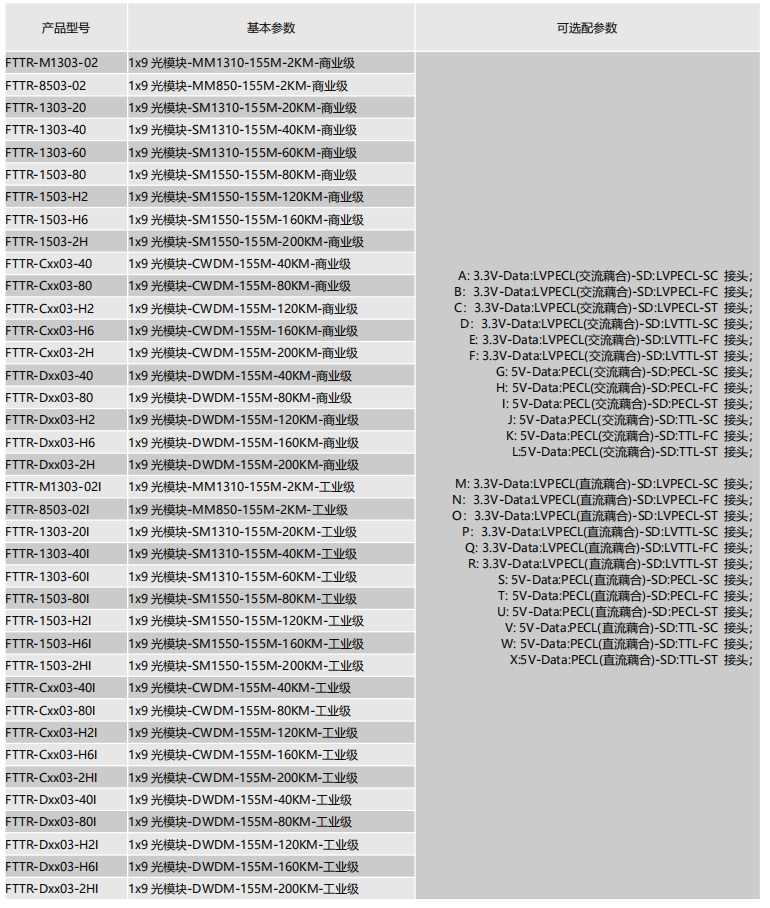

产品选型
注：本产品有全国产化型号可选
本产品为光�？�1x9系列 ，仅展示部分参数 ，如有需要 ，请联系大宝娱乐 。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
