标准光�？�
超低速TTL 1X9单模单纤双向收发一体光�？�(40Km)
Description
超低速TTL 1X9单模单纤双向收发一体光�？�(40Km)
产品描述
● 纯国产零部件
● 单电源供电(5V)
● DC-4Mbps信号传输速率
● 传输距离可达40km
● TTL输入/输出信号
● 1x9封装金属壳FC/ST接口
● 事情温度： -55℃~+70℃
产品应用
● 光纤通信链路

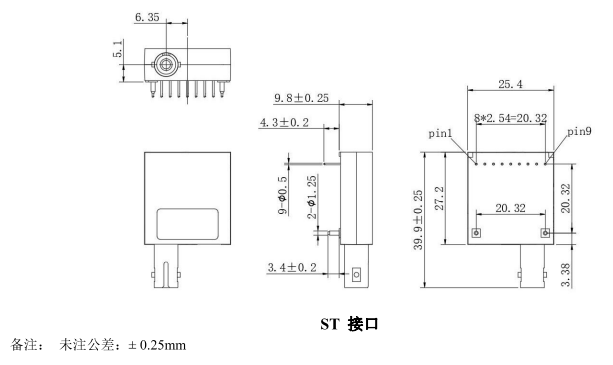

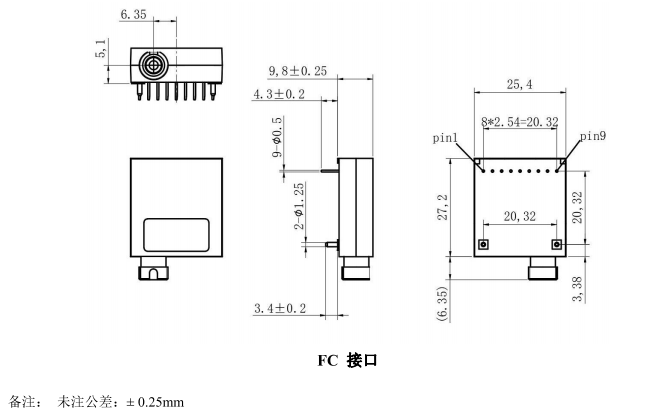

产品尺寸

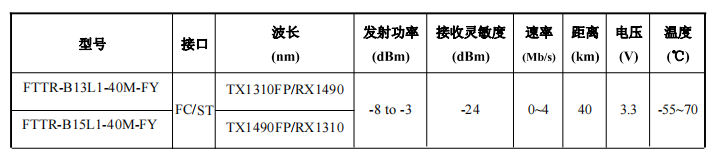

订购信息
注：本产品有全国产化型号可选
本产品为光�？�1x9系列，仅展示部分参数，如有需要，请联系大宝娱乐 。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
