1 x 9 84Mbps MM Receiver Module

Product Description
F-tone’s FLRX-XX02X-XX series of receiver modules are the perfect solution for Low-speed communication networks.The receiver modules support data rates up to 84Mbps. These modules are fully compliant with the Multi-sourced 1x9 protocol.The receiver modules supplies the 5 Voltage and provides the system designer with products to implement a range of low-speed data at the 2 Mbps to 84Mbps rate for fiber communications.

Product Features
¡ñ Multi-sourced 1 x 9 pin packaged
¡ñ 850nm/1310nm receiver
¡ñ SC/FC/ST/PC single receptacle
¡ñ Up to 0~5Km with 62.5/125μm MMF
¡ñ Single 3.3/5V power supply
¡ñ TTL or LVTTL signal output
¡ñ Wave Solderable and washable with process plug inserted
¡ñ Excellent EMI and ESD protection
¡ñ Operating Temperature Range
      -40¡æ to +85¡æ
      0¡æ to +70¡æ

Application
¡ñ WDM 52Mb/s Links
¡ñ PDH,SDH equipments

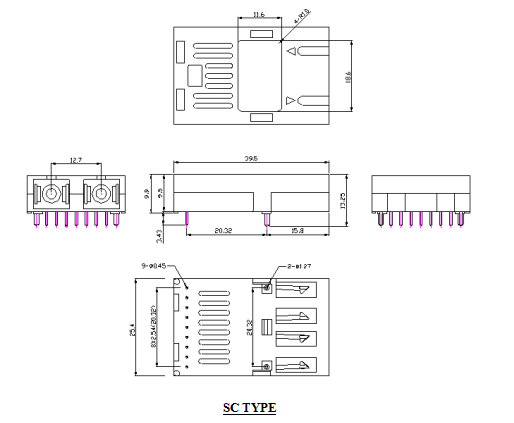

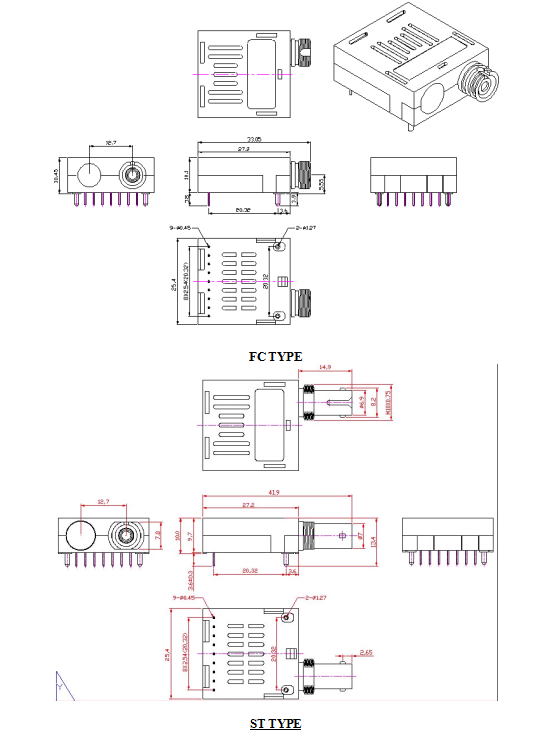

Module Outline Drawing

Ordering information
ÐͺţºFLRX-XX02X-XX

×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡

±¾²úƷΪ¹âÄ£¿é1x9ϵÁУ¬½öչʾ²¿·Ö²ÎÊý£¬ÈçÓÐÐèÒª£¬ÇëÁªÏµ´ó±¦ÓéÀÖ¡£

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
