1 x 9 0~10Mbps MM Transmitter Module

Product Description
F-tone’s FLTX-M1300-02T series of receiver modules are the perfect solution for Low-speed communication networks.The transmitter modules support data rates up to 10Mbps. These modules are fully compliant with the Multi-sourced 1x9 protocol.The transmitter modules supplies the 5 Voltage and provides the system designer with products to implement a range of low-speed data and fiber MODEM designs at the 0 to 10Mbps rate for fiber communications.

Product Features
¡ñ Multi-sourced 1 x 9 pin packaged
¡ñ 1310nm FP Laser Transmitter
¡ñ SC/FC/ST single receptacle
¡ñ Up to 2Km with 62.5/125μm MMF
¡ñ Single 5V power supply
¡ñ TTL or LVTTL signal output
¡ñ Wave Solderable and washable with process plug inserted
¡ñ Two temperature ranges:
— 0°C to +70°C
— -40°C to +85°C for industry level
¡ñ ESD Level: 4
¡ñ Compatible with ROSH6
¡ñ MSL Level: 1

Application
¡ñ RS232/RS485/RS422 receptacle fiber transmission
¡ñ Fiber System

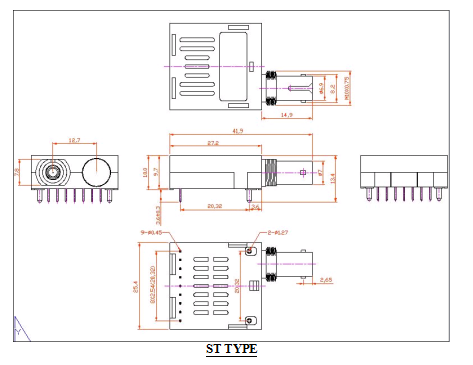

Module Outline Drawing

Ordering information

×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡

±¾²úƷΪ¹âÄ
£¿é1x9ϵÁУ¬½öչʾ²¿·Ö²ÎÊý£¬ÈçÓÐÐèÒª£¬ÇëÁªÏµ´ó±¦ÓéÀÖ¡£

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
