84Mbps DDM 1x9 SM Transceiver Module
Description
84Mbps DDM 1x9 SM Transceiver Module
Product Description
F-tone’s FTTR-13L2-20DFI series of transceiver modules are the perfect solution for Low-speed communication networks.The transceiver modules support data rates up 2Mbps to 84 Mbps. These modules are fully compliant with the Multi-sourced 1×9 protocol.The transceiver modules supplies the TTL interface of 3.3V/5.0 Voltage and provide the system designer with products to implement a range of low-speed data and digital video transmission designs at the 2Mbps to 84 Mbps rate for fiber communications.
Product Features
● Multi-sourced 1 × 9 pin packaged
● 1310nm FP Laser Transmitter
● FC double receptacle
● Up to 20Km with 9/125μm SMF
● Single 3.3V or 5.0V power supply
● Digital diagnostic monitoring
● TTL signal input and output
● TTL logic level signal detect output
● Wave solderable and washable with process plug inserted
● Temperature ranges:
— -40°C to +85°C
Application
● Digital Video
● PDH,SDH equipments

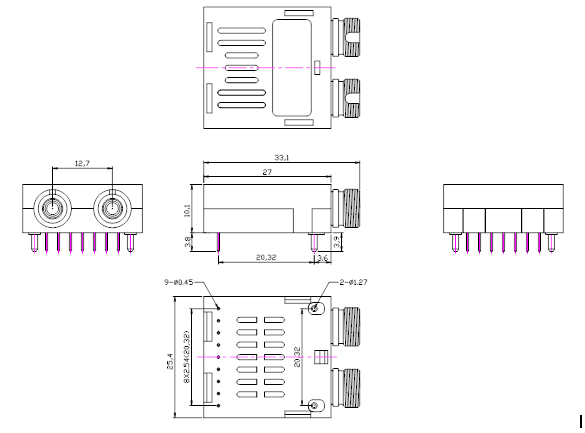

Module Outline Drawing
Ordering information
|
Part Number |
Product Description |
|
FTTR-13L2-20DI |
2~484Mbps DDM 1X9 SM Transceiver Module ,SC , -40ºC ~ +85ºC |
|
FTTR-13L2-20DTI |
2~484Mbps DDM 1X9 SM Transceiver Module ,ST , -40ºC ~ +85ºC |
|
FTTR-13L2-20DFI |
2~484Mbps DDM 1X9 SM Transceiver Module ,FC , -40ºC ~ +85ºC |
注：本产品有全国产化型号可选
本产品为光� ？�1x9系列，仅展示部分参数，如有需要，请联系大宝娱乐。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
