25Gbps SFP28 Bi-Directional Transceiver（FTCS-B27A25G-40DI）
Description
Description
The F-tone Networks FTCS-B27A25G-40DI is designed for Bi-directional 25G serial optical data communications by using 1270nm transmitter and 1310nm receiver. It is a high performance module for 25G Ethernet and Option 10 CPRI applications which operate up to 40km. This module incorporates F-tone Networks proven circuit and technology to provide reliable long life, high performance, and consistent service.
Features
● Hot-pluggable SFP28 form factor
● Up to 25Gbps data rate
● Maximum link length of 40km
● Single LC receptacle, Bi-directional
● CWDM EML laser and APD photo-detector
● 1270nm Tx/1310nm Rx
● Internal CDR on both Transmitter and Receiver channel
● Single 3.3V power supply
● Power dissipation < 1.9W
● RoHS 2.0 compliant (2011/65/EU, lead free)
● Industrial case temperature range: -40°C to 85°C
Applications
● 25G Ethernet
● CPRI Option 10
● Support 10G CPRI option 8 by CDR bypass

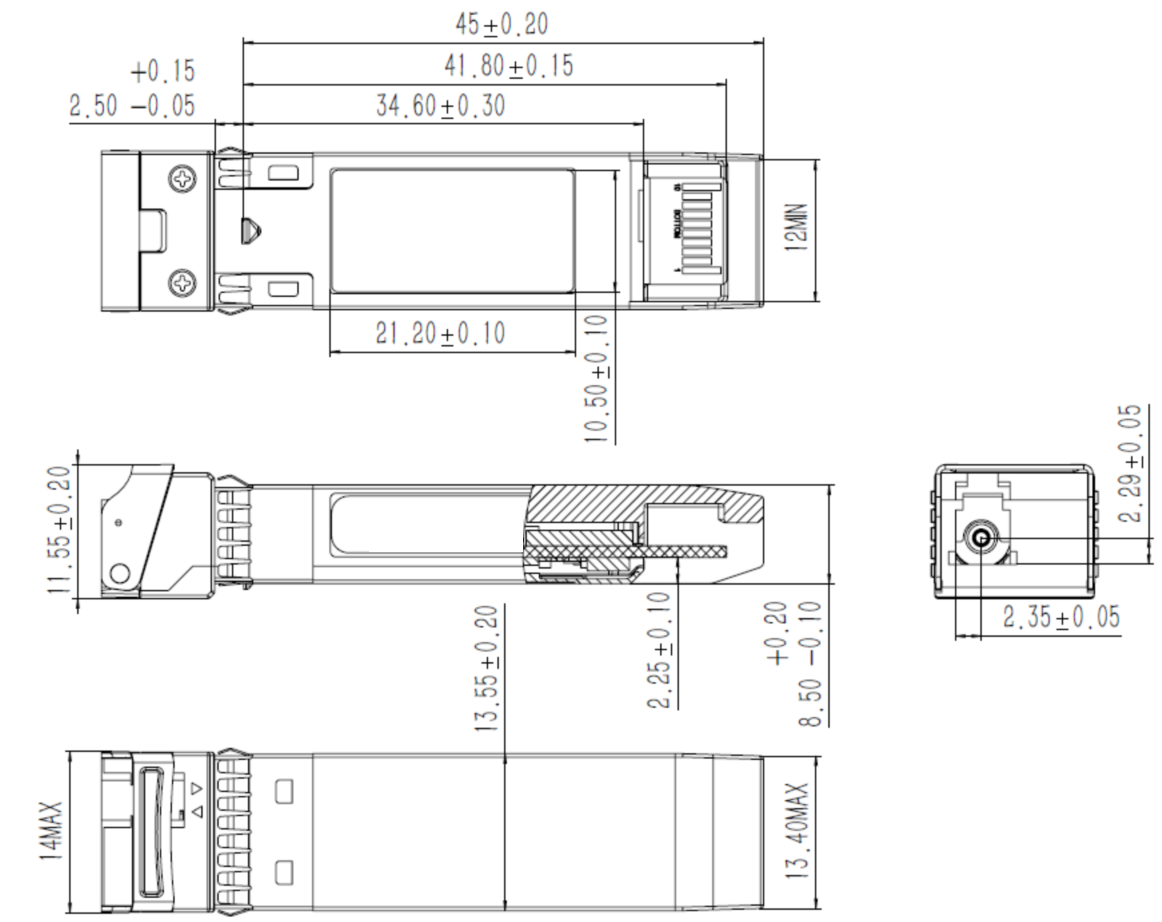

Mechanical Dimensions
Ordering information
|
Part Number |
Product Description |
|
FTCS-B27A25G-40DI |
25Gbps, SFP28 1270nm Tx/1310nm Rx, 40km, -40ºC ~ +85ºC |
本产品为25G~400G高速光模块系列，如有需要，请联系大宝娱乐。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
