25Gbps 1310nm SFP28 Transceiver
Description
Description
This product is a 25Gb/s transceiver module designed for optical communication compliant to Ethernet 25G ER Lite standard. Its high performance 25G application up to 30km/40km(with FEC) Links. The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the SFP+ Multi-Source Agreement (MSA).
Features
● Hot-pluggable SFP28 form factor
● Up to 30Km reach for G.652 SMF without FEC
● Up to 40Km reach for G.652 SMF with FEC
● Internal CDR on both Transmitter and Receiver channel
● Transmitter: cooled 25Gb/s 1310nm EML TOSA
● Receiver: 25Gb/s APD ROSA
● Single 3.3V power supply
● Power dissipation < 2W
● Commercial case temperature range: 0°C to +70°C
● Duplex LC receptacle
● Digital diagnostics functions are available via the I2C interface
● RoHS-6 compliant
Applications
● 25GBASE-ER Lite Ethernet
● CPRI/eCPRI Option 10

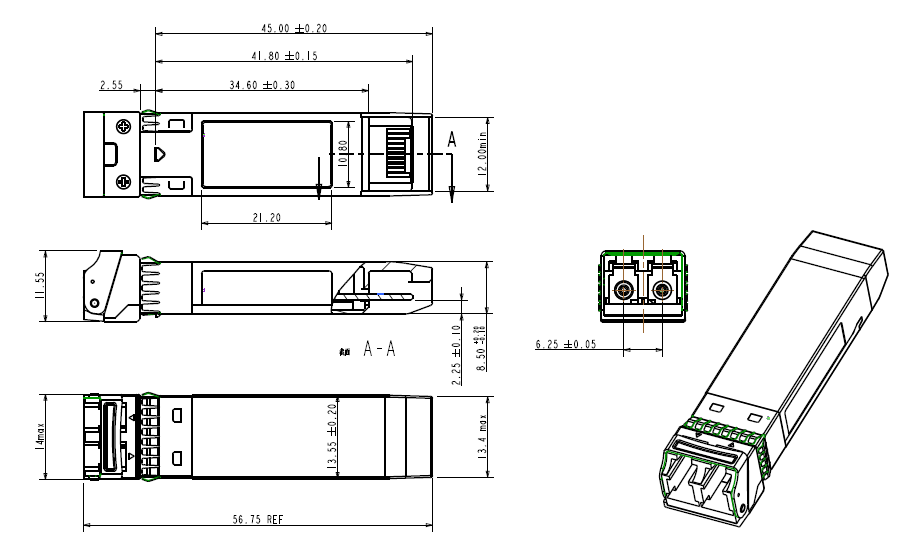

Mechanical Dimensions
Ordering information
|
Part Number |
Product Description |
|
FTCS-1325G-40D |
25Gbps, 1310nm; SFP28, 30Km/40km(FEC), DDM 0ºC ~ +70ºC |
|
FTCS-1325G-40DI |
25Gbps, 1310nm; SFP28, 30Km/40km(FEC), DDM -40ºC ~ +85ºC |
本产品为25G~400G高速光�？橄盗� ，如有需要 ，请联系大宝娱乐。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
