25Gbps LAN-WDM SFP28 I-Temp Transceiver
Description
Description
This product is a high-performance SFP28 transceiver module designed for optical communication, which is both compliant with IEEE 25GBASE-ER and CPRI option 10 standards. Its high performance cooled EML transmitter and high sensitivity APD receiver can provide superior performance for 25G application up to 30km/40km(with FEC) Links.
Features
● Hot-pluggable SFP28 Form Factor
● Supports 25.78Gb/s bit rate
● Supports 24.33Gb/s bit rate
● Transmitter : Cooled EML TOSA
● Receiver : APD ROSA
● Internal CDR circuits on receiver and transmitter
● < 1.8W power dissipation
● Up to 40Km reach for G.652 SMF with FEC
● Duplex LC receptacle
● I-Temp range: -40 to 85°C
● Single 3.3V power supply
● RoHS 2.0 compliant (2011/65/EU, lead free)
Applications
● 25GBASE-ER Ethernet
● CPRI Operation1,2

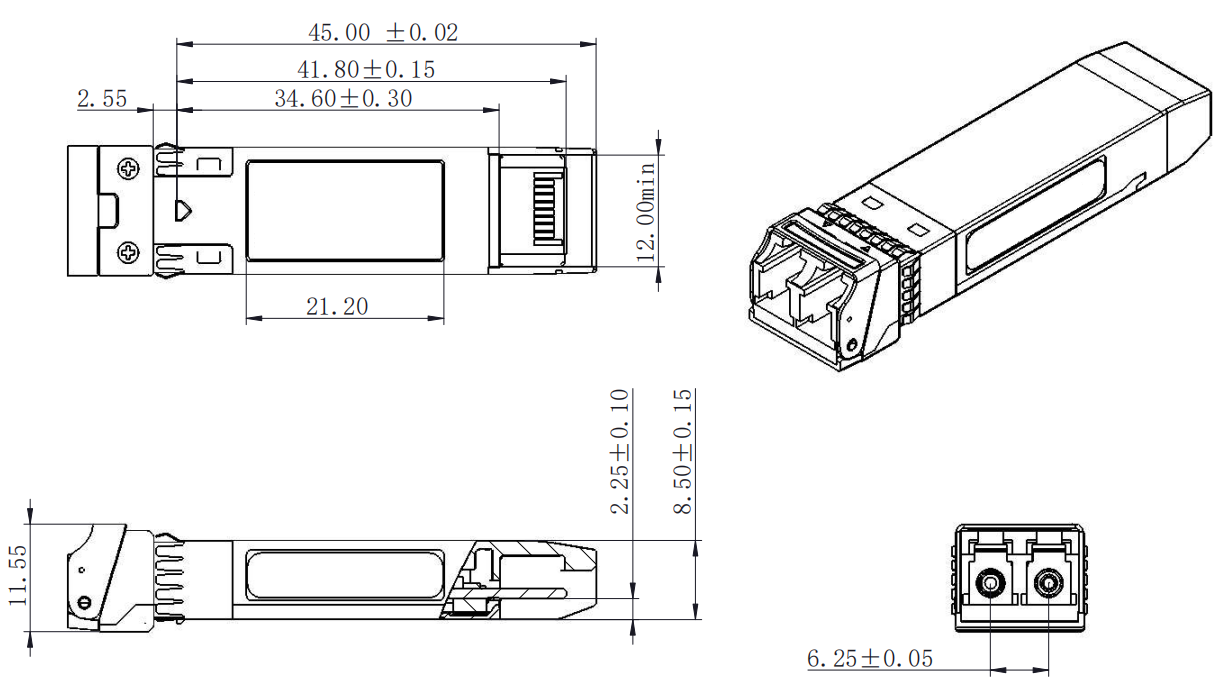

Mechanical Dimensions
Ordering Information
|
Part Number |
Product Description |
|
FTCS-Lx25G-40D |
SFP28, EML, 25G Ethernet, CPRI, 30KM/40km, 0ºC ~ +70ºC |
|
FTCS-Lx25G-40DI |
SFP28, EML, 25G Ethernet, CPRI, 30KM/40km, -40ºC ~ +85ºC |
|
x (Wavelength ID.) |
0=1273.55nm; 1=1277.89nm; 2=1282.26nm; 3=1286.66nm; 4=1291.10nm; 5=1295.56nm; 6=1300.05nm; 7=1304.58nm; 8=1309.14nm. |
本产品为25G~400G高速光�？橄盗�，如有需要，请联系大宝娱乐。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
