24.33Gbps 1310nm SFP28 Transceiver
Description
Description
The F-tone NetworksFTCS-1324G-10Dxx is a single-Channel, Pluggable, Fiber-Optic SFP28 for CPRI Applications. It is a high performance module for short-range data communication and interconnect applications which operate at 24.33 Gbps up to 10km. This module is designed to operate over single mode fiber systems using a nominal wavelength of 1310nm. The electrical interface uses a 20 contact edge type connector. The optical interface uses duplex LC receptacle. This module incorporates F-tone Networks proven circuit and technology to provide reliable long life, high performance, and consistent service.
Features
- Hot-pluggable SFP28 form factor
- Supports 24.33Gbps data rate
- Maximum link length of 10km
- 1310nm DFB laser and PIN photo-detector
- Internal CDR on both Transmitter and Receiver channel
- Duplex LC receptacle
- Single 3.3V power supply
- Power dissipation < 1.5W
- Digital diagnostics functions are available via the I2C interface
- RoHS-6 compliant
- Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
● CPRI Option 10

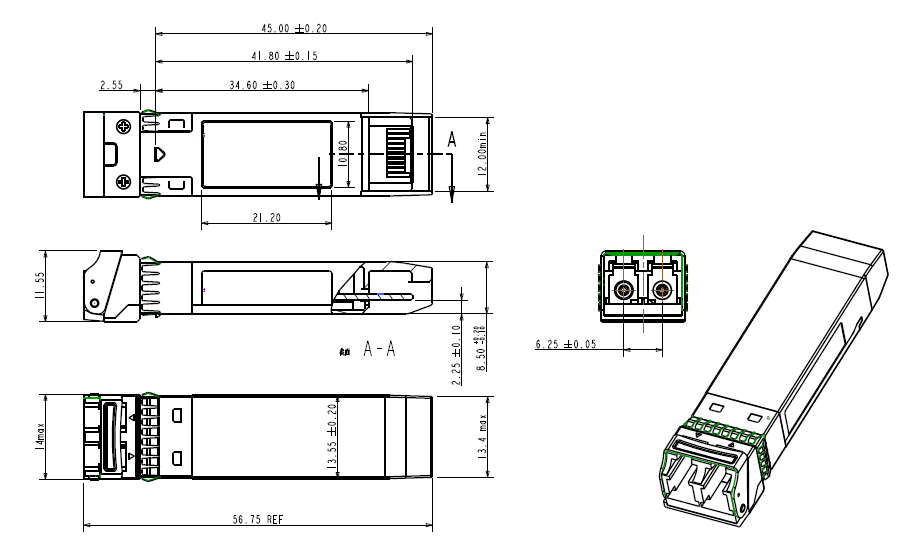

Mechanical Dimensions
Ordering information
|
Part Number |
Product Description |
|
FTCS-1324G-10D |
24.33Gbps, 1310nm; SFP28, 10km, DDM 0ºC ~ +70ºC |
|
FTCS-1324G-10DI |
24.33Gbps, 1310nm; SFP28, 10km, DDM -40ºC ~ +85ºC |
本产品为25G~400G高速光�？橄盗�，如有需要，请联系大宝娱乐 。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
