155Mbps CWDM 1 x 9 SM Transceiver Module
Description
155Mbps CWDM 1 x 9 SM Transceiver Module
Product Description
F-tone’s FTTR-Cxx03-xxxx series of transceiver modules are the perfect solution for high-speed communication networks.The transceiver modules support data rates up to 155Mbps. These modules are fully compliant with the Multi-sourced 1x9 protocol.
The transceiver module supplies the Differential PECL of 3.3V, 5V, 3.3V/5.0V Voltage and provides the system designer with products to implement a range of FDDI and ATM designs at the 100Mbps/155Mbps rate and SONET/OC-3, SDH/STM-1 for telecommunications.Business level transceiver module which operating at 0℃ to 70℃.FTTR-Cxx03-xxxx series of transceiver modules can choose 8 kinds of Wavelength.
Product Features
● Multi-sourced 1 x 9 pin packaged
● 1450nm~1610nm DFB Laser Transmitter
● SC /FC/ST single receptacle or Pigtail SC/PC, ST/PC, FC/PC optional
● Up to 120Km with 9/125μm SMF
● Single 3.3V, 5V, 3.3V/5.0V power supply
● PECL signal input and output
● Wave solderable and washable with process plug inserted
● Tow temperature ranges:
Standard : 0 to +70°C
Industrial : -40 to +85°C
Application
● ATM equipments
● SONET/OC-3、SDH/STM-1 equipments
● 155Mbps Fast Ethernet equipments

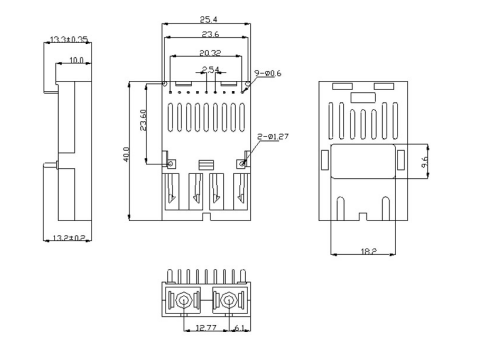

Module Outline Drawing

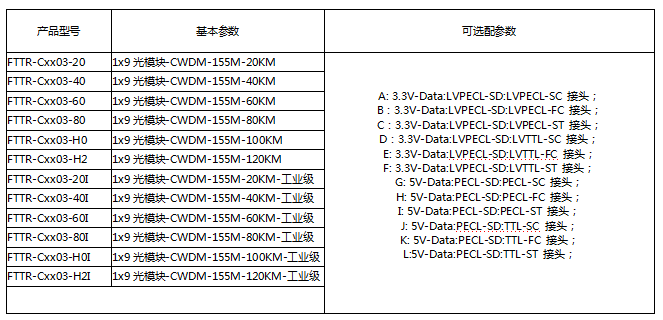

Ordering information
注：本产品有全国产化型号可选
本产品为光�？�1x9系列，仅展示部分参数，如有需要，请联系大宝娱乐。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
