155mbps 1 x 9 sm transceiver module
Description
155mbps 1 x 9 sm transceiver module
Product Description
F-tone’s FTTR-1303-xxx series of transceiver modules are the perfect solution for high-speed communication networks.The transceiver modules support data rates up to 155Mbps. These modules are fully compliant with the Multi-sourced 1x9 protocol.
The transceiver module supplies the Differential PECL of 3.3V/5.0V Voltage and provide the system designer with products to implement a range of FDDI and ATM designs at the 100Mbps / 125Mbps rate and SONET/OC-3、SDH/STM-1 for Telecommunication.Commerce level transceiver module which operating at 0℃ to 70℃ and Industry level which operating extended temperature as -40℃ to +85℃ for available.
Product Features
● Multi-sourced 1 x 9 pin packaged
● 1310nm FP Laser Transmitter
● SC single receptacle
● Up to 40Km with 9/125μm SMF
● 3.3V/5.0V power supply
● PECL signal input and output
● Wave solderable and washable with process plug inserted
● Two temperature ranges:
— 0°C to +70°C
— -40°C to +85°C for industry level
Application
● ATM equipments
● SONET/OC-3、SDH/STM-1 equipments
● 100Mbps Fast Ethernet equipments

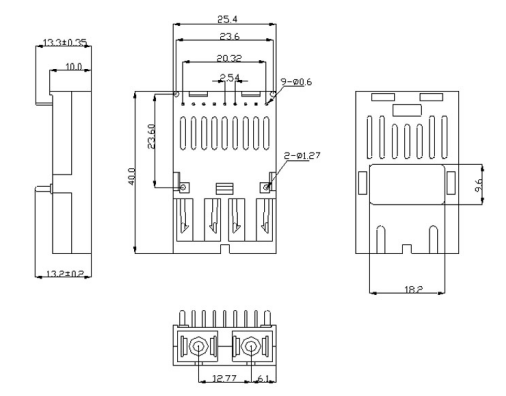

Module Outline Drawing

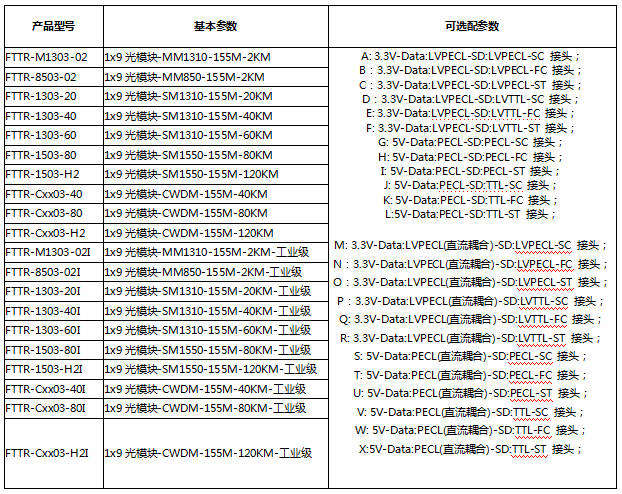

Ordering information
注：本产品有全国产化型号可选
本产品为光�？�1x9系列 ，仅展示部分参数 ，如有需要 ，请联系大宝娱乐。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
