10Gbps SFP+ 850nm 300m 光收发一体�？�
Description
10Gbps SFP+ 850nm 300m 光收发一体�？�
产品描述
该850 nm VCSEL 10Gigabit SFP+光�？樯杓朴糜谕ü�50/125μm或62.5/125μm多模光纤传输和接收光学数据。SFP+SR�？榈牡缙涌谇泻蟂FI电气规范。发射器输入和接收器输出阻抗差为100欧姆。数据线内部交流耦合。该�？樘峁┎罘侄私�，并减少差分到共模的转换，以实现高质量的信号端接和低EMI。SFI通常操作凌驾200mm的革新的FR4质料，或者使用一个连接器操作高达约150mmof的标准FR4。
发射机将10Gbit/s串行PECL或CML电气数据转换为切合10GBASE-SR标准的串行光学数据。提供了开放集电极兼容的传输禁用（Tx_Dis）。该引脚上的逻辑“1”或无连接将禁止激光器传输。此引脚上的逻辑“0”提供正常操作。变送器具有内部自动功率控制回路（APC），以确保在电源电压和温度变革期间输出恒定的光功率。提供了一个与集电极开路兼容的传输故障（TFault）。TX_Fault（TX_Fault）是一个�？槭涑龃サ�，当该触点为高电平时，体现�？楸渌推饕鸭觳獾接爰す馄鞑僮骰蚰蚕喙氐墓收献纯�。TX_Fault输出触点为开路漏极/集电极，应使用4.7-10 kΩ规模内的电阻器将其拉至主机中的Vcc_Host。TX_Disable是一个�？槭淙氪サ�。当TX_Disable被断言为高电平或坚持翻开时，SFP+�？楸渌推魇涑鲇乇�。该触点应通过4.7 kΩ至10 kΩ的电阻器拉高至VccT
接收器将10Gbit/s的串行光数据转换为串行PECL/CML电数据。提供了集电极开路兼容的信号损耗。Rx_LOS当为高时体现光信号电平低于相关标准中划定的电平。Rx_LOS触点为开路漏极/集电极输出，应使用4.7-10 kΩ规模内的电阻器或有源终端将其拉至主机中的Vcc_Host。建议对发射机和接收机进行电源滤波。Rx_LOS信号旨在向装置SFP+的系统提供接收信号强度低于指定规模的开端指示。这种指示通常指向未装置的电缆、断裂的电缆，或电缆远端的禁用、故障或断电变送器。
产品特征
● 切合IEEE 802.3ae 10GBASE-SR的光学接口
● 电气接口切合SFF-8431
● 可热插拔
● 支持高达10.3 Gb/s的速率
● 1G/2G/4G/8G/10G光纤通道应用。
● 850nm VCSEL发射器，PIN光电探测器
● 2000MHz/km MMF上最大链路长度为300m
● 低功耗
● 全金属外壳提供卓越的EMI性能
● 高级固件允许将客户系统加密信息存储在光�？橹�
● 经济高效的SFP+解决计划，实现更高的端口密度和更大的带宽
● 关于OBSAI应用，速率划分为6.144Gb/s、3.072 Gb/s、1.536 Gb/s和0.768 Gb/s。
● 关于CPRI应用程序，速率划分为6.144Gb/s、3.072 Gb/s、2.4576 Gb/s、1.2288 Gb/s和0.6144 Gb/s。
● 切合RoHS6标准（无铅）
● 事情情况温度：
商业级：0~+70℃
工业级：-40~+85℃
应用规模
● 10.3125Gbps的10GBASE-SR
● 10GBASE-SW，9.953Gbps
● 其他光链路
● 关于OBSAI应用，速率划分为6.144Gb/s、3.072 Gb/s、1.536 Gb/s和0.768 Gb/s。
● 关于CPRI应用程序，速率划分为6.144Gb/s、3.072 Gb/s、2.4576 Gb/s、1.2288 Gb/s和0.6144 Gb/s。

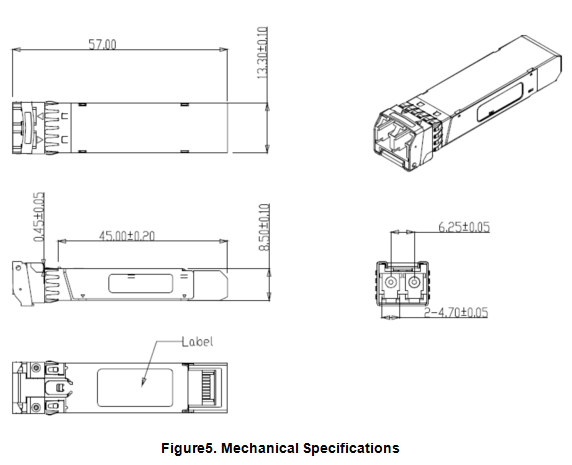

机械尺寸
订购信息
|
产品型号 |
产品描述 |
|
FTCS-851X-02D |
850nm, 10Gbps, SFP+ 300m, 0ºC ~ +70ºC（商业级） |
|
FTCS-851X-02DI |
850nm, 10Gbps, SFP+ 300m, -40 to +85℃ （工业级） |
注：本产品有全国产化型号可选
本产品为SFP+系列光�？�，如有需要，请您联系大宝娱乐:+86-028-85255257。
