10Gb/s Copper SFP 光收发一体�？�
Description
10Gb/s Copper SFP 光收发一体�？�
产品描述
FTCS-10G-Txx铜质小型可插拔（SFP）收发器基于SFP多源协议（MSA） 。它们与IEEE STD 802.3an中划定的千兆以太网标准兼容 。10GBASE-T物理层IC（PHY）可以通过I2C会见，允许会见所有PHY设置和功效 。
FTCS-10G-Txx切合IEEE STD 802.3an、802.3ab和802.3au中划定的10G BASE-T/1000Base-T/1000Base-T标准 。
产品特征
● 支持主机系统中的10GBASE-T操作
● 热插拔SFP封装
● 使用Cat 6a/7电缆最多30米
● 不支持TX_禁用和带链接功效
● 切合SFF-8431和SFF-8432 MSA
● 低功耗（典范值为1.2W）
● I2C双线接口DDM
● 全金属外壳，实现低EMI
● 切合IEEE 802.3az标准
● 单个+3.3V电源
● 紧凑型RJ-45连接器组件
● 切合RoHS-10标准且无铅
● 运行工况温度：
商业级：0~+70℃
产品应用
● 10G BASE-T IEEE 802.3an
● 5G MGBASE-T
● 2.5克毫克/吨
● 1000BASE-T IEEE802.3ab
● 100BASE-T IEEE802.3au

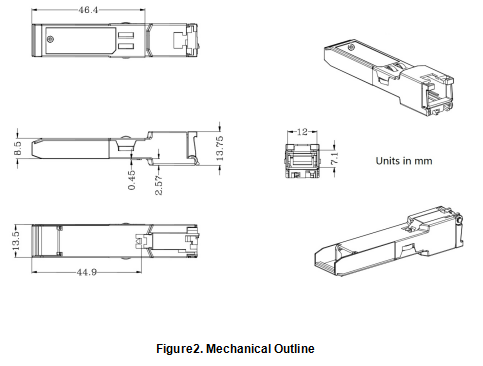

外形规格
Ordering Information
|
产品型号 |
速率 (Gb/s) |
传输距离(m) |
RX_LOS引脚上的链路指示器 |
TX_禁用PHY |
温度规模（级别） |
|
FTCS-10G-Txx |
10 |
30 |
Yes |
No |
0~70 commercial |
注：本产品有全国产化型号可选
本产品为SFP COPPER系列光�？�，仅展示部分参数，如有需要，请您联系大宝娱乐:+86-028-85255257 。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
