10Gbps 2km SFP+ Optical Transceiver

Product description
This 1310 nm FP 10Gigabit SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 2km.The SFP+ 2km module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI. SFI typically operates over 200 mm of improved FR4 material or up to about 150mmof standard FR4 with one connector.

Features
¡ñ Optical interface compliant to IEEE 802.3ae 10GBASE-LR
¡ñ Electrical interface compliant to SFF-8431
¡ñ Hot Pluggable
¡ñ 1310nm FP transmitter, PIN photo-detector
¡ñ Low power consumption
¡ñ Applicable for 2km SMF connection
¡ñ All-metal housing for superior EMI performance
¡ñ Advanced firmware allow customer system encryption information to be stored in transceiver
¡ñ Cost effective SFP+ solution, enables higher port densities and greater bandwidth
¡ñ RoHS6 compliant (lead free)
¡ñ Case operating temperature
      Commercial: 0 ~ +70¡æ
      Industrial: -40 ~ +85¡æ

Applications
¡ñ 10GBASE-LR at 10.3125Gbps
¡ñ Other optical links

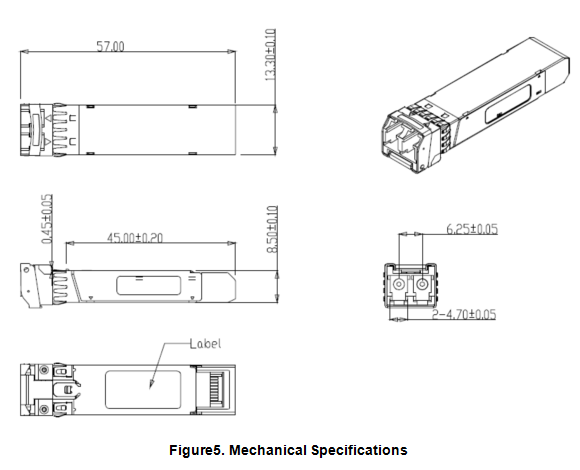

Outline Specification

Ordering Information
