2Mbps 1 x 9 TTL BIDI Transceiver Module
Description
2Mbps 1 x 9 TTL BIDI Transceiver Module
Product Description
F-tone’s FTTR-Bxx01-20xx series of transceiver modules are the perfect solution for Low-speed communication networks.The transceiver modules support data rates DC to 2Mbps. These modules are fully compliant with the Multi-sourced 1x9 protocol.The transceiver modules supplies the TTL interface of 3.3V or 5V Voltage and provide the system designer with products to implement a range of low-speed data and fiber MODEM designs at the DC~2Mbps rate for fiber communications
Product Features
● FP Laser Diode Transmitter
● Single 3.3V,5V power supply
● Up to 20 Km on 9/125μm SMF
● Single SC /FC/ST optical interface
● TTL signal input and output, TTL logic level signal detect output
● Excellent EMI and ESD protection
● Multi-sourced 1 x 9 pin packaged
● Wave Solderable and washable with process plug inserted
● Operating case temperature range(Standard level :0 to +70℃) or (Industrial level: -40°C to +85°C)
Application
● RS232/RS485/RS422 receptacle fiber transmission
● Fiber System

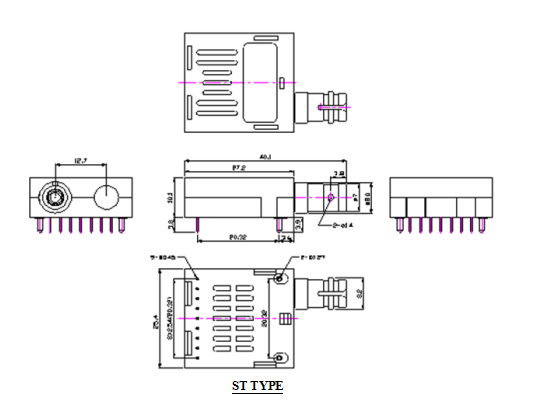

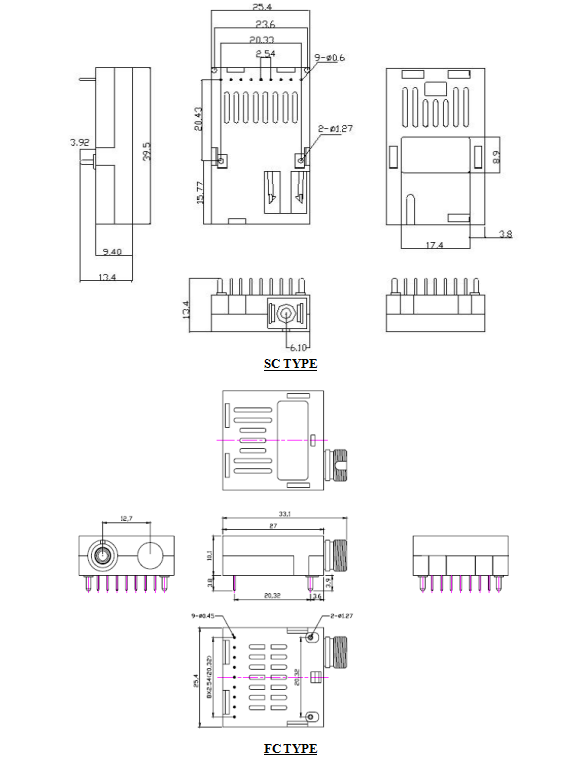

Module Outline Drawing

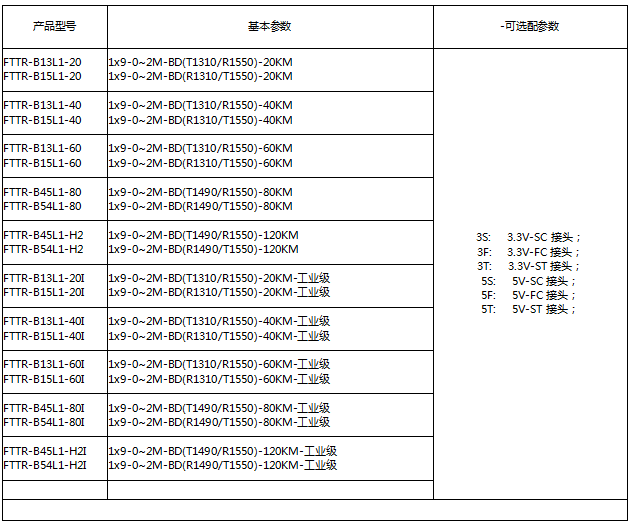

0~2M Ordering information

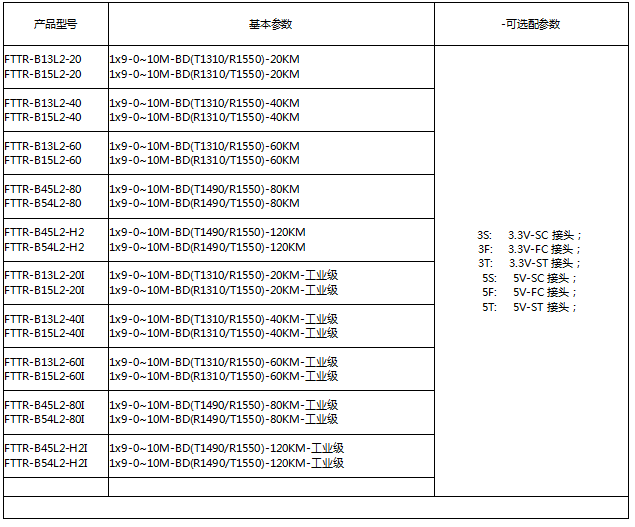

0~10M Ordering information

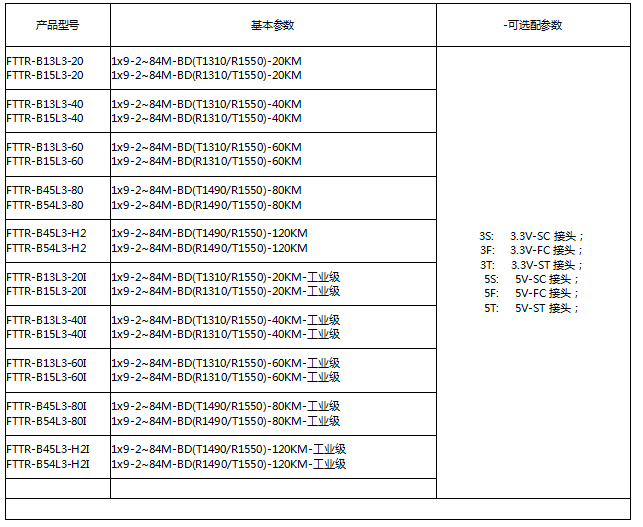

2~100M Ordering information
注：本产品有全国产化型号可选
本产品为光�？�1x9系列，仅展示部分参数，如有需要，请联系大宝娱乐。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
