1.25Gbps CWDM 1 x 9 SM Transceiver Module

Product Description
F-tone’s FTTR-Cxx12-xxx series of transceiver modules are the perfect solution for high-speed communication networks.The transceiver modules support data rates up to 1.25Gbps. These modules are fully compliant with the Multi-sourced 1x9 protocol.
The transceiver module supplies the Differential PECL of 3.3V, 5V, 3.3V/5.0V Voltage and provides the system designer with products to implement a range of Fiber Channel and Gigabit Ethernet designs at the 1.06/1.25Gbps rate and SONET/OC-24 for communications.
Business level transceiver module which operating at 0¡æ to 70¡æ.
FTTR-Cxx12-xxx series of transceiver modules can choose 8 kinds of Wavelength.

Product Features
¡ñ Multi-sourced 1 x 9 pin packaged
¡ñ 1270~1430 DFB or 1450nm~1610nm DFB Laser Transmitter
¡ñ SC /FC/ST single receptacle or Pigtail SC/PC, ST/PC, FC/PC optional
¡ñ Up to 80Km with 9/125μm SMF
¡ñ Single 3.3V, 5V, 3.3V/5.0V power supply
¡ñ PECL signal input and output
¡ñ Wave solderable and washable with process plug inserted
¡ñ Temperature range:
     -40¡æ to +85¡æ
     0¡æ to +70¡æ

Application
¡ñ Digital video transmission

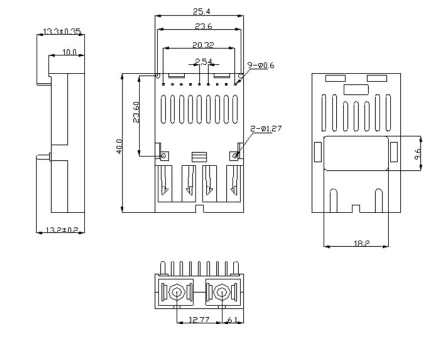

Module Outline Drawing

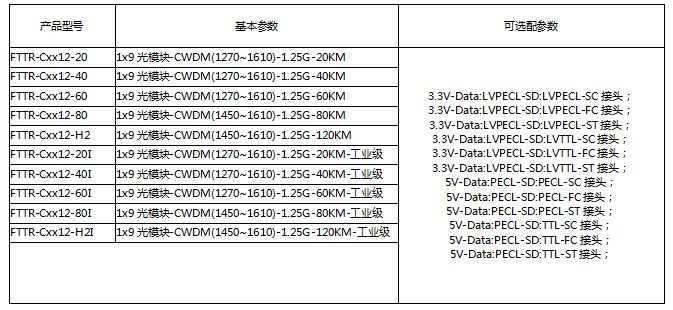

Ordering information

×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡

±¾²úƷΪ¹âÄ£¿é1x9ϵÁУ¬½öչʾ²¿·Ö²ÎÊý£¬ÈçÓÐÐèÒª£¬ÇëÁªÏµ´ó±¦ÓéÀÖ
¡£

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
