1.25Gbps Bi-Di Transceiver Module

Product Description
F-tone’s FTTR-BXX12-XX series of transceiver modules are the perfect solution for High-speed communication networks.The transceiver modules support data rates up to 1250 Mbps. These modules are fully compliant with the Multi-sourced 1x9 protocol.
The FTTR-BXX12-XX series is high performance module for single fiber communications by using 1310nm/1550nm transmitter and 1550nm/1310 nm receiver. The transmitter section uses a DFB laser diode and is a class 1 laser compliant according to International Safety Standard IEC-825. The receiver section uses an integrated 1310 nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. A PECL logic interface simplifies interface to external circuitry.

Product Features
¡ñ Single Fiber Bi-Directional Transceiver
¡ñ 1310nm FP and 1550nm DFB Laser Diode Transmitter
¡ñ SC /FC /ST single receptacle or Pigtail SC/PC, ST/PC, FC/PC optional
¡ñ Operating case temperature:
     Standard : 0 to +70°C
     Industrial : -40 to +85°C
¡ñ Data rates Up to 1250 Mbps
¡ñ Industry Standard 1 x 9 Footprint
¡ñ Single 3.3V, 5V, 3.3V/5.0V power supply
¡ñ PECL Differential Inputs and Outputs
¡ñ Wave Solderable and Aqueous Washable
¡ñ Class 1 Laser International Safety Standard IEC 825 Compliant
¡ñ Optical Isolation > 30 dB
¡ñ Cross Talk < -40 dB

Application
¡ñ Gigabit Ethernet
¡ñ Fiber channel
¡ñ Digital video transmission system
¡ñ Other Optic Link

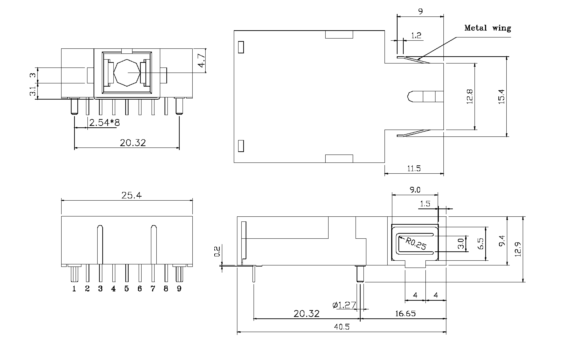

Module Outline Drawing

Ordering information

×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡

±¾²úƷΪ¹âÄ
£¿é1x9ϵÁУ¬½öչʾ²¿·Ö²ÎÊý£¬ÈçÓÐÐèÒª£¬ÇëÁªÏµ´ó±¦ÓéÀÖ¡£

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
