标准光�？�
多模双纤双向LC插拔微型光�？�
Description

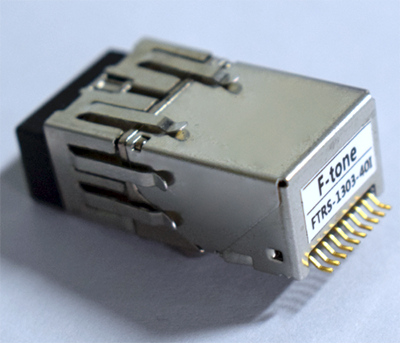

多模双纤双向LC插拔微型光�？�
产品描述
多模双纤双向LC插拔微型光收发�？�10G 850nm , 主要应用于光背板、高可靠高数据率点对点光纤通信、数字雷达阵列、以太网、Sonet/SDH、交换机等种种数字光纤通信领域，具有体积小、抗振动、抗滋扰等特点。�？橥庑问褂萌鹗艚峁�，接纳10Pin排针电接口，内置单路850nm波段光发射组件和单路850nm波段光接收组件，发射通道和接收通道事情速率可达10.3125Gbps,光接口为可插拔的标准LC连接器接口，事情温度规模为-40℃~85℃.
产品特征
● 高可靠、全金属外壳、抗振动设计
● 紧凑的结构设计，超小�？槌叽�
● 可插拔标准LC光纤连接器接口，便当动态和灵活的配置数据连接
● 每通道事情速率可达10.3125Gbps，速率可向下兼容
● 单路发射光纤通道，内置850nm波长光发射组件
● 单路接收光纤通道，内置850nm波长光接收组件
● 发射使能控制，接收告警功效
● 3.3V单电源供电，功耗小于0.8W
● 宽事情温度规模 : -40℃~85℃
产品应用
● 以太网、Sonet/SDH、交换机等数字光纤通信系统
● 高可靠高数据率点对点光纤通信
● 数字雷达阵列
● 光背板传输

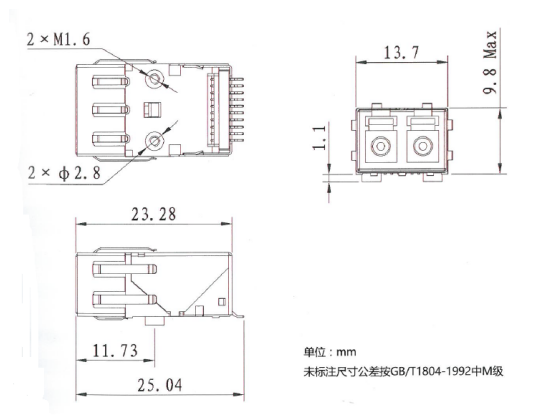

外形尺寸
订购信息
|
产品型号 |
接口
|
速率 (Gb/s) |
距离 (m) |
波长 (nm) |
电压 (V) |
发射功率 (dBm) |
接收灵敏度 (dBm) |
事情温度 (℃) |
|
FT-95-RS-851X-02I |
LC |
10.3125 |
300 |
850 |
3.3 |
-5 to 0 |
-10 |
-40~85 |
本产品为FT-95-系列，仅展示部分参数，如有需要，请联系大宝娱乐。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
