0~100Mbps MINISFF LVTTL Single Mode Transceiver (10Km)
Description
0~100Mbps MINISFF LVTTL Single Mode Transceiver (10Km)
FEATURES

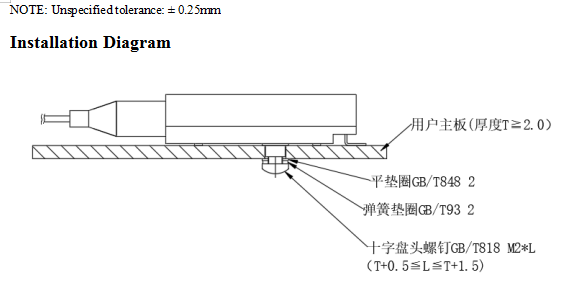

● All metal body, screw mounting
● 1310 FP transmitter
● MiniSFF FC Pigital Transceiver
● DC~100M Data Rate
● LVTTL Inputs & Outputs
● Distance up to 10km
● Single 3.3V Power Supply
● RoHs Compliance
● Operating case temperature:
FT-95-RS-13L4: 0℃ to 70℃
FT-95-RS-13L4-I: -40℃ to 85℃
APPLICATIONS
● Low Rate Bus transmission
● Unbalanced Signal transparent transmission
Ordering Information
|
P/No. |
Package |
Bit Rate (Mb/s) |
Dist. (km) |
Wavelength (nm) |
TX Power (dBm) |
RX Sens (dBm) |
Volt. (V) |
Temp. (℃) |
|
FT-95-RS-13L4 |
FC尾纤 |
DC-100 |
10 |
1310 |
-6 to 0 |
-12 |
3.3 |
0 ~70 |
|
FT-95-RS-13L4-I |
FC尾纤 |
DC-100 |
10 |
1310 |
-6 to 0 |
-12 |
3.3 |
-40 ~85 |
NOTE : FT-95-RS-13L4-xxx
X=01, 光纤长度：0.1m
X=02, 光纤长度：0.2m
...
X=09, 光纤长度：0.9m
X=10, 光纤长度：1.0m
X=12, 光纤长度：1.2m
X=15, 光纤长度：1.5m
X=18, 光纤长度：1.8m
X=20, 光纤长度：2.0m
本产品为FT-95-系列，仅展示部分参数，如有需要，请联系大宝娱乐。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
