FTRC 10G transceiver modules
Description
FTRC 10G transceiver modules
Product Description
F-tone'S FTRC-XX1X series of transceiver modules are the perfect solution for high -speed communication networks. These transceiver modules support data rates up to 10.5Gbps. The module is fully compliant with Small Form-Factor Transceiver. These transceiver modules provides the system designer with Telecom, Datacom, and other Fibre Channel applications
Product Features
● VCSEL/DFB Laser Diode Transmitter
● Distance up to 300m at MM Fiber
300m links with OM3 MMF Cables
82m links with OM2 MMF Cables
33m links with OM1 MMF Cables
● Up to 20 Km on 9/125μm SMF
● 3.3Vpower supply
● LC duplex optical interface
● (LV)PECL/CML Differential Inputs 、CML Differential Outputs and ( LV)TTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard：0 to +70℃) or (Industrial： -40°C to +85°C)
Application
● High-speed Storage Area Networks
● Other optic links

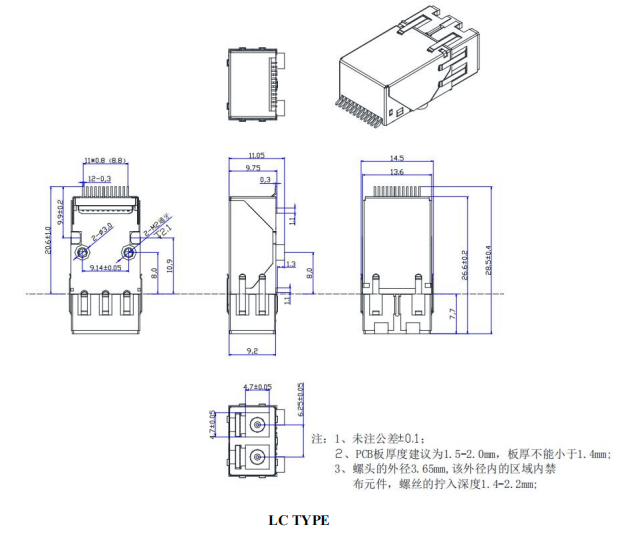

Module Outline Drawing（Units in mm)
本产品为FTRC系列 ，仅展示部分参数 ，如有需要 ，请联系大宝娱乐。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
