2.5G CWDM RJ 10PIN Transceiver Module
Description
2.5G CWDM RJ 10PIN Transceiver Module
Product Description
F-tone Networks’s FTRC-Cxx24-xx series of transceiver modules are the perfect solution for high -speed communication networks.These transceiver modules support data rates up to 2.5Gbps. The module is fully compliant with Small Form-Factor Transceiver.These transceiver modules provide the system designer with Telecom, Datacom, and other Fibre Channel applications.
Product Features
● CWDM Laser Diode Transmitter
● Up to 40 Km on 9/125μm SMF
● 3.3Vpower supply
● LC duplex optical interface
● CML Differential Inputs and CML Outputs and LVTTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard：0 to +70℃) or (Industrial： -20°C to +80°C)
Application
● Fiber Channel Switch Infrastructure
● STM16 Optical Interface
● SONET / SDH Switch Infrastructure
● Other optic links

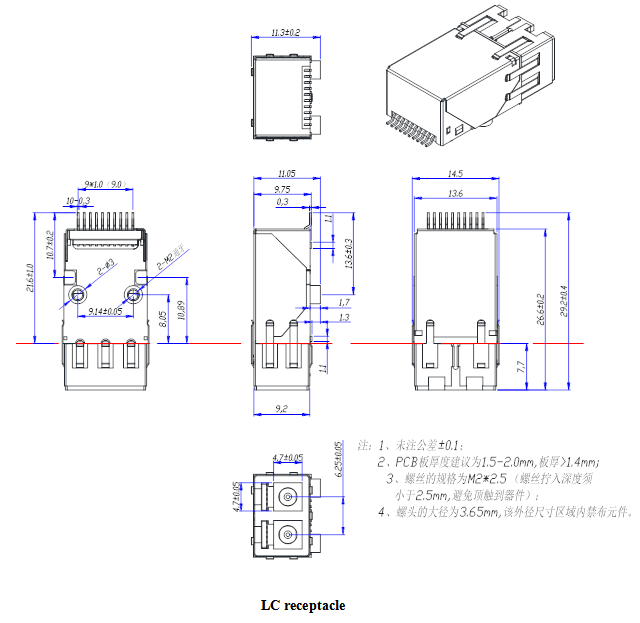

Module Outline Drawing（Units in mm)
Order Information
|
Type |
Fiber Type |
Wavelength(nm) |
Fiber Length(Km) |
|
FTRC-Cxx24-20I |
SM |
1270~1430 |
20 |
|
FTRC-Cxx24-40I |
SM |
1270~1430 |
40 |
|
FTRC-Cxx24-20I |
SM |
1450~1610 |
20 |
|
FTRC-Cxx24-40I |
SM |
1450~1610 |
40 |
Note：1.The suffix“-CWDM”denote the wavelength.
本产品为FTRC系列 ，仅展示部分参数 ，如有需要 ，请联系大宝娱乐。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
