Description
The F-tone Networks Technologies FTQD-2H-SR4-QD-Oxxx is an Eight-Channels, Pluggable, Parallel, Fiber-Optic QSFP Double Density for 2x100 Gigabit Ethernet Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnection applications. It integrates eight data lanes in each direction with 8x25.78125Gbps bandwidth. Each lane can operates at 25.78125Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 76 contact edge type connector. The optical interface uses a 24 fiber MTP (MPO) connector. This module incorporates F-tone Networks Technologies proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.

Features
¡ñ 8 channels full-duplex transceiver modules
¡ñ Transmission data rate up to 26Gbps per channel
¡ñ Compliant with QSFP-DD MSA V5.0 and CMIS V4.0
¡ñ 8 channels 850nm VCSEL array
¡ñ 8 channels PIN photo detector array
¡ñ Internal CDR circuits on both receiver and transmitter channels
¡ñ Support CDR bypass
¡ñ Low power consumption <4W
¡ñ Hot Pluggable QSFP DD form factor
¡ñ Maximum link length of 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF
¡ñ MPO24 connector receptacle
¡ñ Built-in digital diagnostic functions
¡ñ 3.3V power supply voltage
¡ñ RoHS 6 compliant(lead free)
¡ñ Case operating temperature
     Commercial: 0 ~ +70¡æ
     Industrial: -40 ~ +85¡æ

Applications
¡ñ IEEE 802.3bm 100GBASE SR4

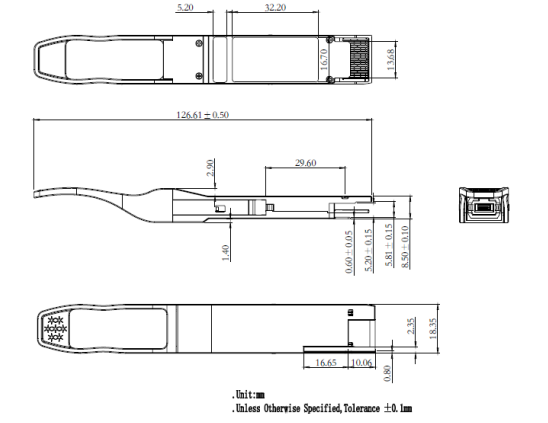

Mechanical Dimensions

Ordering Information
