Description
The F-tone Networks Technologies FTQD-2H-PSMLR4xx is a Eight-Channel, Pluggable, Parallel, Fiber-Optic QSFP DD PSM8 for 2×100 Gigabit Ethernet , Infiniband DDR/EDR Applications. This transceiver is a high performance module for data communication and interconnect applications. It integrates eight data lanes in each direction with 208 Gbps bandwidth. Each lane can operate at 26Gbps up to 10km over G.652 SMF. These modules are designed to operate over singlemode fiber systems using a nominal wavelength of 1310nm. The electrical interface uses a 76 contact edge type connector. The optical interface uses an 24 fiber MTP (MPO) connector. This module incorporates F-tone Networks Technologies proven circuit and Optical technology to provide reliable long life, high performance, and consistent service.

Features
¡ñ 8 channels full-duplex transceiver modules
¡ñ Supports 8×25Gb/s aggregate bit rates
¡ñ Supports 8×10Gb/s aggregate bit rates if required
¡ñ 8 channels 1310nm DFB
¡ñ 8 channels PIN photo detector array
¡ñ Internal CDR circuits on both receiver and transmitter channels
¡ñ Support CDR bypass
¡ñ Low power consumption <6.5W
¡ñ Hot Pluggable QSFP DD form factor
¡ñ Up to 10km reach for G.652 SMF
¡ñ Single male MPO(APC 8-degree) connector receptacle
¡ñ 3.3V power supply voltage
¡ñ RoHS 2.0 compliant (lead free)
¡ñ Case operating temperature
     Commercial: 0 ~ +70¡æ
     Industrial: -40 ~ +85¡æ

Applications
¡ñ 2×100G Ethernet links
¡ñ Infiniband DDR/EDR
¡ñ Datacenter and Enterprise networking

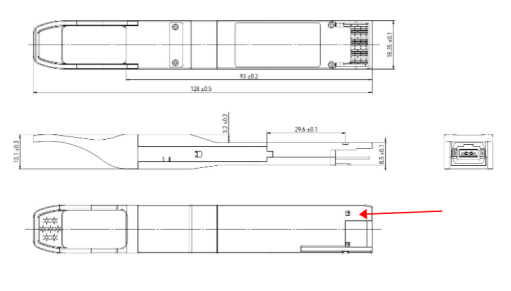

Mechanical Dimensions

Ordering Information

±¾²úƷΪ25G~400G¸ßËÙ¹âÄ£¿éϵÁÐ
£¬ÈçÓÐÐèÒª
£¬ÇëÁªÏµ´ó±¦ÓéÀÖ¡£
×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
