Description
F-tone Networks’s FTQ5-2H-2Q5-Oxxx MMF Active Optical Splitter Cable is used in 200 Gigabit Ethernet links over OM3/OM4/OM5 multimode fiber, which provides connectivity between system units with a 200GbE connector on one side and two separate 100GbE connectors on the other two sides. The cable connects data signals from each of the 4 MMF (Multi Mode Fiber) pairs on the single QSFP56 end to the dual pair of each of the QSFP56 multiport ends.
F-tone Networks’s FTQ5-2H-2Q5-Oxxx MMF Active Optical Splitter Cable is compliant with the QSFP-MSA and with 200GBASE-SR4 specification. Digital diagnostics functions are available via the I2C interface as specified by CMIS V4.0. The transceiver is RoHS 2.0 compliant and lead-free per Directive 2011/65/EU.

Features
¡ñ SFF-8665 compliant QSFP56 form factor
¡ñ 200GbE to 2x100GbE data rate
¡ñ 4x 50Gb/s PAM4 modulation
¡ñ Supports 103.1Gb/s aggregate bit rates if requiredNote1
¡ñ Low power dissipation < 5W (200G End)
¡ñ RoHS-6 compliant (lead-free)
¡ñ Single 3.3V power supply
¡ñ Maximum link length of 70m on OM3 MMF and 100m on OM4 & OM5 MMF
¡ñ Uncooled 4 channels 850nm VCSEL array (200G End)
¡ñ 4 channels PIN photo detector array (200G End)
¡ñ 200GBASE-SR4 and 100GBASE-SR2 compliant
¡ñ I2C management interface
¡ñ CMIS V4.0 compliant
¡ñ Case operating temperature
     Commercial: 0 ~ +70¡æ
     Industrial: -40 ~ +85¡æ

Applications
¡ñ IEEE 802.3cd 200GBASE-SR4 Ethernet (PAM4)

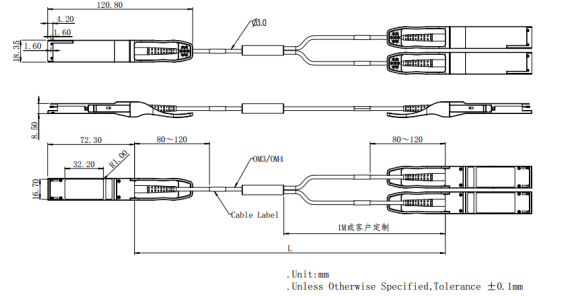

Mechanical Dimensions

Ordering Information

±¾²úƷΪ25G~400G¸ßËÙ¹âÄ£¿éϵÁУ¬ÈçÓÐÐèÒª£¬ÇëÁªÏµ´ó±¦ÓéÀÖ¡£
×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
