200GBASE-SR4 QSFP56 Optical Transceiver Module
Description
Description
F-tone Networks’s FTQ5-2H-SR4xx 200GE QSFP56 Optical Transceiver modules are designed for use in 200 Gigabit Ethernet links over OM3/OM4/OM5 multimode fiber. They are compliant with the QSFP MSA and with IEEE 802.3cd 200GBASE-SR4 specification. Digital diagnostics functions are available via the I2C interface as specified by CMIS V4.0. The transceiver is RoHS 2.0 compliant and lead-free per Directive 2011/65/EU.
Features
● Hot-pluggable QSFP56 form factor
● Built-in 200G PAM4 DSP
● Supports 212.5Gb/s aggregate bit rates
● Supports 103.1Gb/s aggregate bit rates if requiredNote1
● Low power dissipation < 5W
● RoHS-6 compliant (lead-free)
● Single 3.3V power supply
● Maximum link length of 70m on OM3 MMF and 100m on OM4 & OM5 MMF
● Uncooled 4 channels 850nm VCSEL array
● 4 channels PIN photo detector array
● 200GAUI-4 electrical interface
● Single MPO12 receptacle
● CMIS V4.0 compliant
● Built-in digital diagnostic functionality
● Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
● IEEE 802.3cd 200GBASE-SR4 Ethernet (PAM4)
● IEEE 802.3bm 100GBASE-SR4 Ethernet (NRZ) Note1

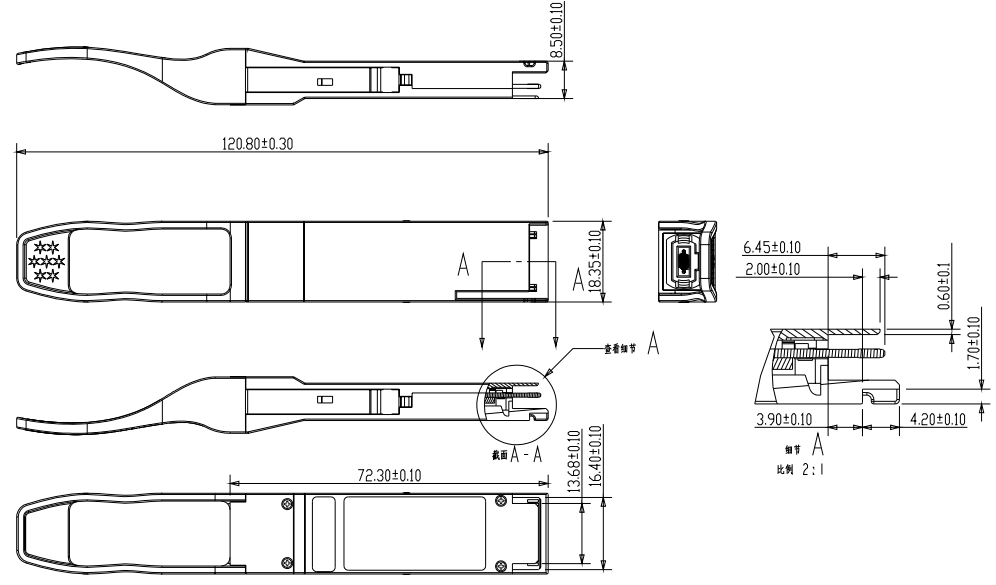

Mechanical Dimensions
Ordering Information
|
Part Number |
Product Description |
|
FTQ5-2H-SR4 |
QSFP56, 200GBASE-SR4 Transceiver, 70m on OM3 (MMF)and 100m on OM4/OM5 MMF, DSP version. |
|
FTQ5-2H-SR4I |
QSFP56, 200GBASE-SR4 Transceiver, 70m on OM3 (MMF)and 100m on OM4/OM5 MMF, DSP version. |
本产品为25G~400G高速光�？橄盗�，如有需要，请联系大宝娱乐。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
