Description
This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-4WDM-10 of the IEEE P802.3ba standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of CWDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of CWDM optical signals and then converts them to 4 output channels of electrical data.
The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in IEEE 802.3ba. The high performance cooled CWDM DFB transmitters and high sensitivity PIN receivers provide superior performance for 100Gigabit Ethernet applications up to 10km links
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

Features
¡ñ 4 channels full-duplex transceiver modules
¡ñ Transmission data rate up to 26Gbps per channel
¡ñ 4 x 26Gb/s DFB-based CWDM Cooling transmitter
¡ñ 4 channels PIN ROSA
¡ñ Internal CDR circuits on both receiver and transmitter channels
¡ñ Low power consumption <4W
¡ñ Hot Pluggable QSFP form factor
¡ñ Up to reach 10km for G.652 SMF
¡ñ Duplex LC receptacles
¡ñ 3.3V power supply voltage
¡ñ RoHS compliant(lead free)
¡ñ Case operating temperature
     Commercial: 0 ~ +70¡æ
     Industrial: -40 ~ +85¡æ

Applications
¡ñ Data Center Interconnect.
¡ñ 100G 4WDM-10 10km reach.
¡ñ 100G CWDM4 applications.
¡ñ Infiniband EDR interconnects.
¡ñ Enterprise networking

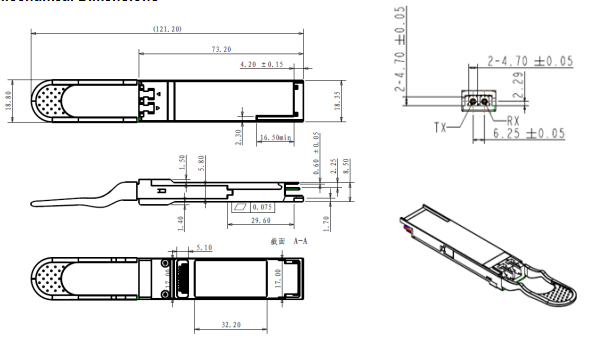

Mechanical Dimensions
