Description
This product is a 100Gb/s receiver module designed for optical communication applications compliant to QSFP28 4WDM 40km MSA/100GBASE-ER4 Lite/OTU4 standard. On the receiver side, the module de-multiplexes a 111.8Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.
The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309.14 nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba. The high performance cooled LAN WDM DFB transmitters and high sensitivity APD receivers provide superior performance for 100Gigabit Ethernet applications up to 30km links without FEC and up to 40km links with FEC interconnections.

The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

Features
¡ñ 4 channels receiver modules
¡ñ Supports data rate up to 111.8Gb/s
¡ñ Supports QSFP28 4WDM 40km MSA \100GBASE-ER4 Lite\OTU4
¡ñ 4 channels APD ROSA
¡ñ Internal CDR circuits on receiver channels
¡ñ Low power consumption <2.5W
¡ñ Hot Pluggable QSFP form factor
¡ñ Up to 30km reach for G.652 SMF without FEC
¡ñ Up to 40km reach for G.652 SMF with FEC
¡ñ LC receptacles
¡ñ 3.3V power supply voltage
¡ñ RoHS 6 compliant(lead free)
¡ñ Case operating temperature
      Commercial: 0 ~ +70¡æ
      Industrial: -40 ~ +85¡æ

Applications
¡ñ IEEE 802.3ba 100GBASE ER4 Links
¡ñ Client-side 100G interconnections
¡ñ OTN OTU4

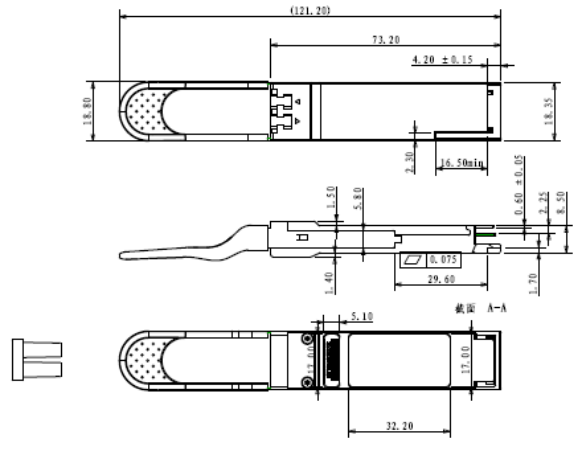

Mechanical Dimensions

Ordering information

±¾²úƷΪ25G~400G¸ßËÙ¹âÄ£¿éϵÁÐ£¬ÈçÓÐÐèÒª£¬ÇëÁªÏµ´ó±¦ÓéÀÖ
¡£
×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
