Description
The F-tone Networks FTQ2-HG-PSMIR4xx is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP 28 PSM4 for 100 or 40 Gigabit Ethernet , Infiniband DDR/EDR Applications. This transceiver is a high performance module for data communication and interconnect applications. It integrates four data lanes in each direction with 104 Gbps bandwidth. Each lane can operate at 26Gbps up to 2km over G.652 SMF.These modules are designed to operate over singlemode fiber systems using a nominal wavelength of 1310nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 12 fiber MTP (MPO) connector. This module incorporates F-tone Networks proven circuit and Optical technology to provide reliable long life, high performance, and consistent service.

Features
¡ñ 4 channels full-duplex transceiver modules
¡ñ Transmission data rate up to 26Gbps per channel
¡ñ 4 channels 1310nm DFB
¡ñ 4 channels PIN photo detector array
¡ñ Internal CDR circuits on both receiver and transmitter channels
¡ñ Support CDR bypass
¡ñ Low power consumption<3.5W
¡ñ Hot Pluggable QSFP form factor
¡ñ Up to 2km reach for G.652 SMF
¡ñ Single male MPO(APC 8-degree) connector receptacle
¡ñ 3.3V power supply voltage
¡ñ RoHS 6 compliant(lead free)
¡ñ Case operating temperature
     Commercial: 0 ~ +70¡æ
     Industrial: -40 ~ +85¡æ

Applications
¡ñ 100G Ethernet links
¡ñ Infiniband DDR/EDR
¡ñ Datacenter and Enterprise networking

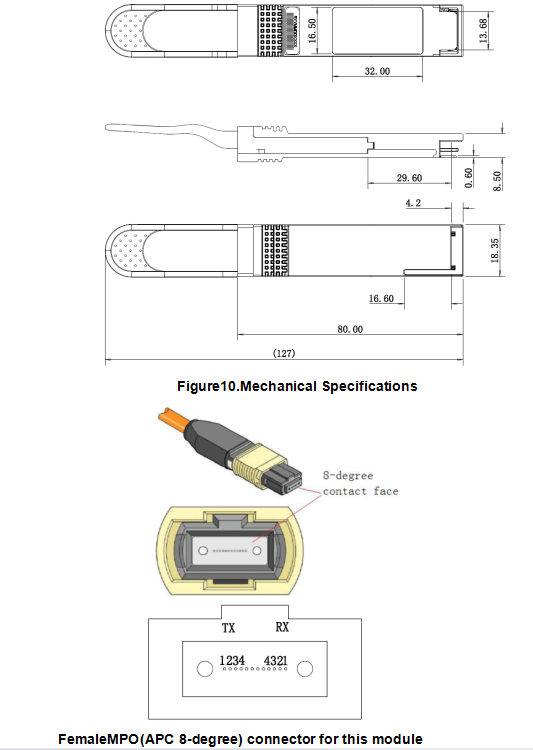

Mechanical Dimensions

Ordering information

±¾²úƷΪ25G~400G¸ßËÙ¹âÄ£¿éϵÁУ¬ÈçÓÐÐèÒª£¬ÇëÁªÏµ´ó±¦ÓéÀÖ¡£
×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
