Description
The F-tone Networks 100GBASE-LR4 10km QSFP28 optical transceiver (FTQ2-HG-LR4-10xx) is designed for use in 100-Gigabit Ethernet links up to 10km on Single Mode Fiber (SMF). It is compliant with the QSFP28 MSA, IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA. It converts 4 input channels of 25.78125Gb/s electrical data to 4 channels of LAN-WDM optical signals and then multiplexes them into a single channel for 103.125Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 103.125Gb/s optical input into 4 channels of LAN-WDM optical signals and then converts them to 4 output channels of electrical data. The central wavelengths of the 4 LAN-WDM channels are 1295.56nm, 1300.05nm, 1304.58nm and 1309.14nm as members of the LAN-WDM wavelength grid defined in IEEE 802.3ba.

Features
¡ñ Hot-pluggable QSFP28 form factor
¡ñ 4 channels full-duplex transceiver module
¡ñ Supports 103.125Gb/s aggregate bit rate
¡ñ 4 channels DFB-based LAN-WDM cooling transmitter
¡ñ 4 channels PIN ROSA
¡ñ Internal CDR circuits on both receiver and transmitter channels
¡ñ 3.5W maximum power dissipation
¡ñ Maximum link length of 10km on SMF
¡ñ Duplex LC receptacle
¡ñ Single 3.3V power supply
¡ñ RoHS-6 compliant (lead free)
¡ñ Case operating temperature
     Commercial: 0 ~ +70¡æ
     Industrial: -40 ~ +85¡æ

Applications
¡ñ 100GBASE-LR4 100G Ethernet

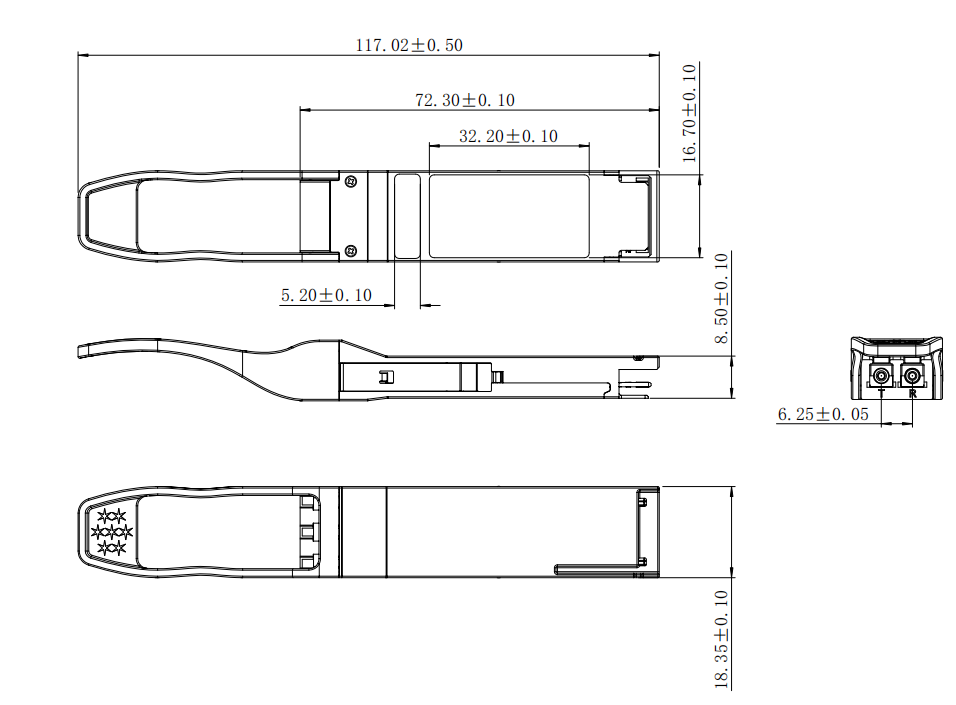

Mechanical Dimensions

Ordering Information
