Description
This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.
The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309.14 nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba. The high performance cooled LAN WDM DFB transmitters and high sensitivity PIN receivers provide superior performance for 100Gigabit Ethernet applications up to 10km links and compliant to optical interface with IEEE802.3ba Clause 88 100GBASE-LR4 requirements.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

Features
¡ñ 4 channels full-duplex transceiver modules
¡ñ Transmission data rate up to 26Gbps per channel
¡ñ 4 x 26Gb/s DFB-based LAN-WDM Cooling transmitter
¡ñ 4 channels PIN ROSA
¡ñ Internal CDR circuits on both receiver and transmitter channels
¡ñ Low power consumption <3.5W
¡ñ Hot Pluggable QSFP form factor
¡ñ Up to reach 20km for G.652 SMF
¡ñ Duplex LC receptacles
¡ñ 3.3V power supply voltage
¡ñ RoHS 6 compliant(lead free)
¡ñ Case operating temperature
     Commercial: 0 ~ +70¡æ
     Industrial: -40 ~ +85¡æ

Applications
¡ñ IEEE 802.3ba 100GBASE LR4

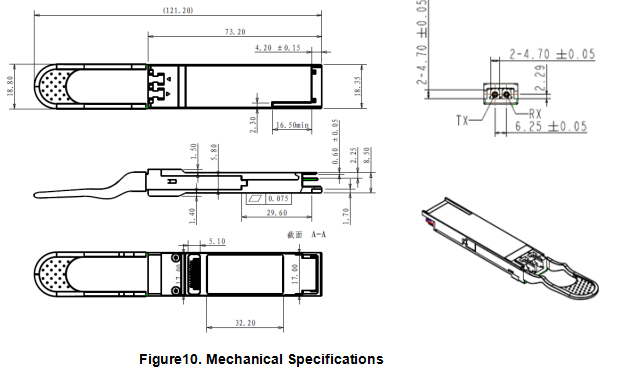

Mechanical Dimensions

Ordering information
