100G CFP
F-tone Networks CFP 100GBASE-LR4 / CFP 1000GBASE-ER module supports a link length of 10, 20, 25, 40km on standard single-mode fiber (SMF, G.652). 100 Gigabit Ethernet signal is carried over four wavelengths.

100G CFP ER4
ER4 CFP transceiver modules are designed for use in 100 Gigabit Ethernet links on up to 40km of single mode fiber. They are compliant with the CFP MSA, IEEE 802.3ba.The optical transceiver is RoHS compliant.

100G CFP LR4 Optical Transceiver£º100G CFP LR4¹âÄ£¿éÖ§³Ö100GbEºÍOTU4Êý¾ÝÔÚ10kmµ¥Ä£¹âÏËÉϵĴ«Êä,½ÓÄÉ4¸öEML¼¤¹âÆ÷ºÍPIN½ÓÊÕÆ÷×é³ÉºÍ²¨·Ö¸´Óü¼Êõ½«4·²î±ð²¨³¤¸´ÓÃÔÚÒ»¸ù¹âÏËÉÏ´«ËÍ
£¬¸Ã¹âÄ£¿éÇÐºÏ CFP MSAºÍIEEE 802.3ba* 100GBASE-LR4¡£¿Éͨ¹ýMDIO½øÐÐÊý×Ö¼à¿Ø¹¦Ð§¡£

¹¦Ð§ÌØÐÔ

100G CFP Optical Transceiver Module

100G CFP SR10¹âÄ£¿é£¨400m£©

´ó±¦ÓéÀÖ£¨F-tone Networks£©100G CFP SR10¹âÄ£¿é£¨400m£©×¨Îª100GÒÔÌ«Íø100GBASE-SR10Éè¼Æ,¿ÉÁ¬½Ó¶à¸ö850nm¶àÄ£¹âÏË.

100G CFP to QSFP28 Adapter£º´ó±¦ÓéÀÖ100G CFP to 100G QSFP28 Adapterת½ÓÆ÷ʵÏÖCFP½Ó¿Ú£¨10X10Gbps£©ÓëQSFP28½Ó¿Ú£¨4X25Gbps£©Ë«Ïòת»»
£¬Âú×ãIEEE 802.3ba 100GBASE-LR4ºÍIEEE 802.3bm 100GBASE-SR4ЭÒé
£¬×î´ó¹¦ºÄµÍÓÚ4W
£¬Ö§³ÖÇ°Ïò¾À´í±àÂ루FEC£©¡¢Êý×ÖÕï¶Ï£¨DDM£©¹¦Ð§¡£Îª100GÒÔÌ«ÍøºÍµçÐÅÍøÌṩ¸ßÐÔÄÜ¡¢ÈȲå°Î»¥Áª¼Æ»®¡£ ¾­ÑéÖ¤
£¬½ÓÄÉ100m OM4¶àÄ£¹âÏ˽øÐд«Êä
£¬¸ÃÄ£¿éʵ²â¹¦ºÄµÍÓÚ2.3W
£¬²¢ÀÖ³ÉʵÏÖ4СʱÁ¬ÐøÊÂÇéÁãÎóÂë¡£

100G CFP4 SR4
£¬P/N: CFP4-SR4
£¬ÔÚOM3¶àÄ£¹âÏËÉÏ×´«Êä¾àÀëΪ100m
100G CFP4 LR4
£¬P/N: CFP4-LR4
£¬ÔÚµ¥Ä£¹âÏËÉÏ×´«Êä¾àÀëΪ10km
100G CFP4 ER4
£¬P/N: CFP4-ER4
£¬ÔÚµ¥Ä£¹âÏËÉÏ×´«Êä¾àÀëΪ30km
±ðµÄ
£¬F-tone Networks»¹½«ÓÚ2015ÄêÍƳö25G SFP28 AOC¡¢SR ºÍ LR Lite ²úÆ·¡£

Field proven installations;Cost-Per-Bit reduction by enabling X10 capacity on a single wavelength;Reduce CEPAX by enabling deployment of un-compensated networks (Green field);Cost effective utilization of congested 10G networks (Brown field);Single 100G carrier cost effective utilization of congested networks;Robust coherent transmission;Low OSNR Tolerance achieved by built in SD-FEC

100G-CFP-10
100G-CFP-10 is Multi-Vendor MSA Compatible 100GBASE-LR4 CFP (Centum Form Factor Pluggable) Transceiver, operating over pair of single-mode optical fiber with four independent optical communication lanes, separated from each other using LAN WDM technology.

100G-CFP-40
100G-CFP-40 is Multi-Vendor MSA Compatible 100GBASE-ER4 CFP (Centum Form Factor Pluggable) Transceiver, operating over pair of single-mode optical fiber with four independent optical communication lanes, separated from each other using LAN WDM technology.

100GBASE-LR4 10km Gen2 CFP Optical Transceiver
100GE CFP optical transceiver modules are designed for use in 100 Gigabit Ethernet links over single mode fiber. They are compliant with the CFP MSA and IEEE 802.3ba 100GBASE-LR4. Digital diagnostics functions are available via an MDIO interface, as specified by the CFP MSA and Application Note AN-2080.

100GBASE-LR4 CFP 10kmOptical Transceiver

Unique solution enabling implementation of a single carrier 200G module or 2 x 100G CFP modules on a single line-card design;Best available spectral efficiency in the market for 50GHz spacing;Unique slim design - enabling single slot implementation;Utilizing standard CFP host interface

F-tone¡¯s CFP-40GNRZ-VSR 40G CFP transceiver modules are designed for use in 40 Gigabit links required for router to router client side applications or uplink interconnections to transport networks. Designed to enable optical compatibility with existing carrier client interfaces VSR2000-3R2 per ITU-T G.693, they are compliant with the CFP MSA, IEEE 802.3bg 40GBASE-FR and OTU3 requirements specified in ITU-T G.709. Digital diagnostics functions are available via an MDIO interface, as specified by the CFP MSA. The transceiver is RoHS-6 compliant and lead-free per Directive 2002/95/EC.

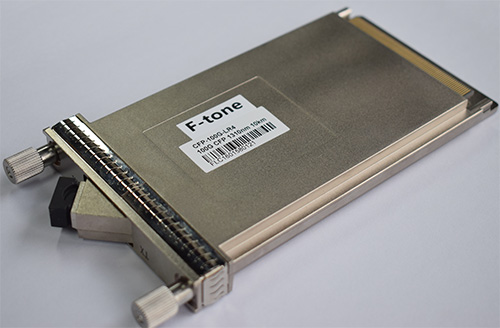

F-tone CFP 100GBASE-LR4 module supports a link length of 10 kilometers on standard single-mode fiber (SMF, G.652). 100 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device.

F-tone Electrical Loopback CFP CFP-XLB-XX is used for testing CFP transceiver ports in board level test. The electrical loopback provides a cost effective low loss method for CFP port testing. CFP-XLB-XX is packaged in a standard MSA housing compatible. Transmit data from the host is electrically routed, (internal to the loopback module), to the receive data outputs and back to the host.

CFP Dual 40GBASE-SR4 / OTU3 Parallel Optical Module:pictureDesigned to support the IEEE 40GBASE-SR4 link specification; the newly developed F-tone Dual 40G CFP transceiver offers 2 independent 40G Ethernet links in one CFP slot. The F-tone CFP transceiver has two MPO ports which connect to industry standard 12-fiber multi-mode fiber cable. Both MPO ports will inter-operate with equipment using 40GBASE-SR4 QSFP transceivers.

F-tone 100/40G CFP test board is designed to provide an efficient and easy method of programming and testing 40/100G CFP modules. It comes with comes with complete operations software and user manual to enable intuitive testing. Host board is electrically transparent as maximum, allowing a more accurate assessment of the modules' performance.

• Transmission data rate up to 11.2Gbit/s per channel
• CFP MSA compliant
• Compliant to IEEE 802.3ba specification for 100GBASE-SR10 links
• Up to 11.2 Gbps per channel bandwidth,
• OTU4 compatible
• 10 channels 850nm VCSEL array
• 10 channels PIN photo detector array
• OM3 Multimode Fiber cable of up to 300m and OM4 Multimode Fiber cable of up to 400m
• MDIO digital diagnostic and control capabilities.
• compliant to CFP MSA Management Interface Specification, Draft 1.4
• TX input and RX output CDR retiming
• Hot pluggable electrical interface
• Power class 1 (<8W max)
• Operating case temperature 0¡ãC to +70¡ãC
• 3.3V power supply
• RoHS 6 compliant(lead free)
