CFP 40G Transceiver

F-tone CFP-1640G-10, CFP-1640G-20, CFP-1640G-40 40G CFP transceiver modules are designed for use in 40 Gigabit Ethernet links over single mode fiber. They are compliant with the CFP MSA1 and IEEE 802.3ba 40GBASE-LR4, 40GBASE-ER4. Digital diagnostics functions are available via an MDIO interface, as specified by the CFP MSA. The transceiver is RoHS-6 compliant and lead-free per Directive 2002/95/EC3.

CFP-1640G-10 Series    CFP LR4 / CFP 40G LR4 / CFP-40G-LR4  It is designed to operate over singlemode fiber system using four 10Gbps CWDM channel in 1300 band. Which is based on two LC connectors for optical connectivity and supports 40Gbps data rate links of up to 10km.

CFP-1640G-20 Series    CFP LR4 / CFP 40G LR4 /CFP-40G-LR4  It is designed to operate over singlemode fiber system using four 10Gbps CWDM channel in 1300 band. Which is based on two LC connectors for optical connectivity and supports 40Gbps data rate links of up to 20km.

CFP-1640G-40 Series    CFPER4 / CFP 40G ER4 /CFP-40G-ER4  It is designed to operate over singlemode fiber system using four 10Gbps CWDM channel in 1300 band. Which is based on two LC connectors for optical connectivity and supports 40Gbps data rate links of up to 40km.

Features:

• Supports 41.2Gbps aggregate bit rates
• CWDM DFB laser and PIN receiver
• Up to 10km, 20km, 40km transmission on SMF
• Single 3.3V Power Supply and Power dissipation <8W
• Hot-Pluggable CFP Footprint Duplex LC Connector Interface
• Class 1 FDA and IEC60825-1 Laser Safety Compliant
• Operating Case Temperature Standard: 0C~+70C
• Compliant with CFP MSA Specification
• MDIO interface with integrated Digital Diagnostic Monitoring
• XLAUI electrical interface

Application:

• 40GBASE-LR4 Ethernet
• 40GBASE-ER4 Ethernet

Ordering information:

CFP 40G Wiki

The first-generation 40GBase-LR4 optical transceiver is based on a 4x10G architecture that comprises the following discrete components:

•     10G CWDM 1310nm uncooled directly modulated distributed feedback (DM-DFB) transmit optical subassemblies (TOSAs)
•     10G PIN photodiode (PD) with integrated transimpedance amplifier (TIA)
•     Receive optical subassemblies (ROSAs)
•     Four-channel optical multiplexing/de-multiplexing filters
•     Quad dual-channel clock/data recovery (CDR) IC. The quad CDR IC provides the XLAUI 4x10G electrical interface defined in the IEEE Std 802.3ba-2010 specification

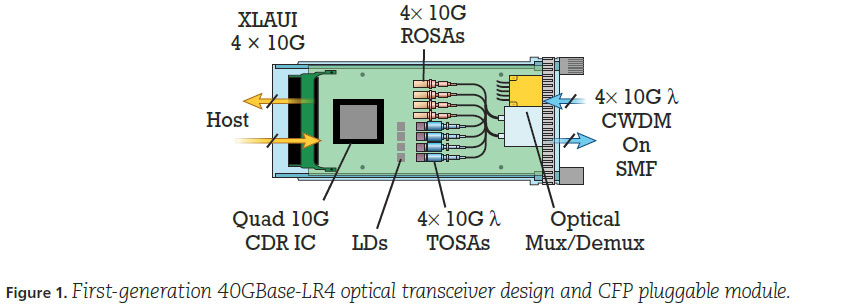

These components are packaged into the pluggable CFP module; the module¡¯s mechanical, electrical, and management interface specifications are given in the recently completed CFP MSA rev. 1.4, as shown in figure 1 below.

40GBASE-SR4 ("short range") is a port type for multi-mode fiber and uses 850 nm lasers. Its Physical Coding Sublayer 64b/66b PCS is defined in IEEE 802.3 Clause 82 and its Physical Medium Dependent PMD in Clause 86. It uses four lanes of multi-mode fiber delivering serialized data at a rate of 10.3125 Gbit/s per lane. 40GBASE-SR4 has a reach of 100m on OM3 and 150m on OM4. There is a longer range variant 40GBASE-eSR4 with a reach of 300m on OM3 and 400m on OM4. This extended reach is equivalent to the reach of 10GBASE-SR. 40GBASE-LR4

40GBASE-LR4 ("long range") is a port type for single-mode fiber and uses 1300 nm lasers. Its Physical Coding Sublayer 64b/66b PCS is defined in IEEE 802.3 Clause 82 and its Physical Medium Dependent PMD in Clause 87. It uses four wavelengths delivering serialized data at a rate of 10.3125 Gbit/s per wavelength.

40GBASE-ER4 ("extended range") is a port type for single-mode fiber being defined in P802.3bm and uses 1300 nm lasers. Its Physical Coding Sublayer 64b/66b PCS is defined in IEEE 802.3 Clause 82 and its Physical Medium Dependent PMD in Clause 87. It uses four wavelengths delivering serialized data at a rate of 10.3125 Gbit/s per wavelength

Tx&Senesetivity CFP 40G
