84Mbps/1.25Gbps Bi-Di Asymmetry Transceiver Module

Product Description
F-tone’s FTTR-BxxBE-20xx/FTTR-BxxEB-20xx series of transceiver modules are the perfect solution for High-speed communication networks.The transceiver modules may use different data rates (or data level) between transmitter and receiver, support data rates up to 1250 Mbps. These modules are fully compliant with the Multi-sourced 1x9 protocol.
The FTTR-BxxBE-20xx/FTTR-BxxEB-20xx series is high performance module for single fiber communications by using 1310nm/1550nm transmitter and 1550nm/1310nm receiver. The transmitter section uses a FP laser diode and is a class 1 laser compliant according to International Safety Standard IEC-825. The receiver section uses an integrated 1310 nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. A PECL logic interface simplifies interface to external circuitry.

Product Features
¡ñ Single Fiber Bi-Directional Transceiver
¡ñ 1310nm FP and 1550nm FP Laser Diode Transmitter
¡ñ Distance Up to 20km
¡ñ Industry Standard 1 x 9 Footprint
¡ñ Single 5V power supply
¡ñ Single Fiber ST /FC/SC
¡ñ 1.25Gbps PECL Differential Inputs and Outputs
¡ñ 84Mbps TTL Inputs and Outputs
¡ñ Wave Solderable and Aqueous Washable
¡ñ Class 1 Laser International Safety Standard IEC 825 Compliant
¡ñ Optical Isolation > 30 dB
¡ñ Cross Talk < -40 dB
¡ñ Operating case temperature:
       Standard : 0 to +70°C
       Industrial : -40 to +85°C

Application
¡ñ WDM 1250 Mb/s Links
¡ñ SONET/SDH Equipment Interconnect
¡ñ Digital video transmission

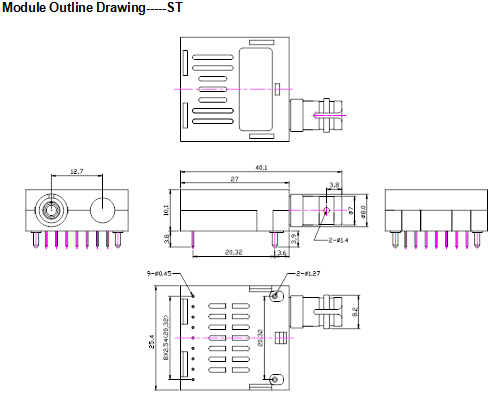

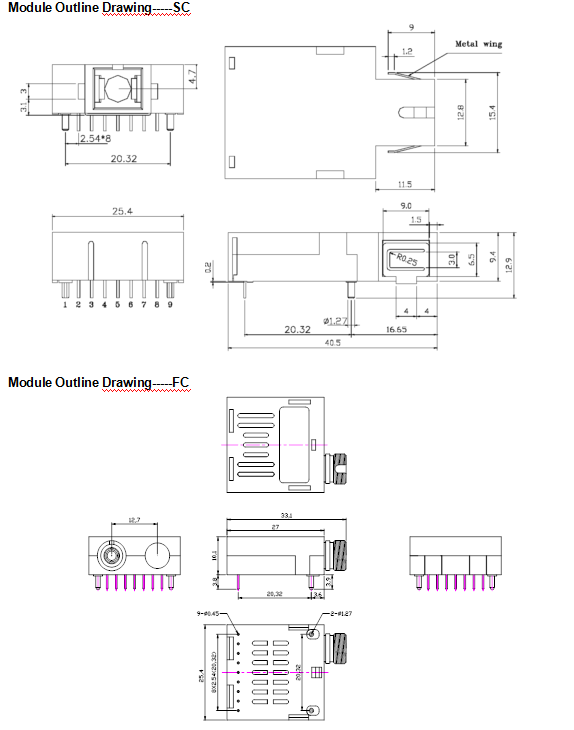

Module Outline Drawing

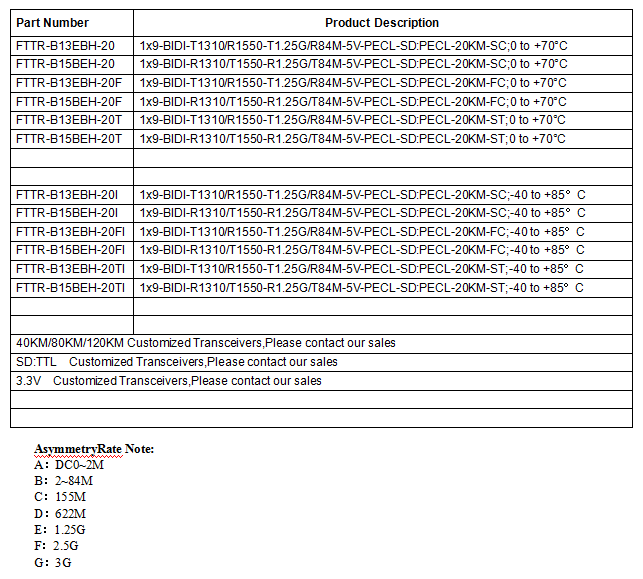

Ordering information
