0~52Mbps 1×9 TTL MM Transceiver Module
Description
0~52Mbps 1×9 TTL MM Transceiver Module
Product Description
F-tone’s FLTR-8502H-05X series of transceiver modules are the perfect solution for Low-speed communication networks.The transceiver modules support data rates up 2 to 52 Mbps. These modules are fully compliant with the Multi-sourced 1×9 protocol.
The transceiver modules supplies the TTL interface of 5.0 Voltage and provide the system designer with products to implement a range of low-speed data and digital video transmission designs at the 2 to 52 Mbps rate for fiber communications.Commerce level transceiver module which operating at 0℃ to 70℃.
Product Features
● Multi-sourced 1 x 9 pin packaged
● 850nm VCSEL Laser Transmitter
● ST/SC/FC receptacle
● Up to 0.5Km with 62.5/125μm MMF
● Single 5V power supply
● TTL signal input and output
● TTL logic level signal detect output
● Wave Solderable and washable with process plug inserted
● Two temperature ranges:
— 0°C to +70°C
— -40°C to +85°C for industry level
Application
● Fiber System
● Digital Video

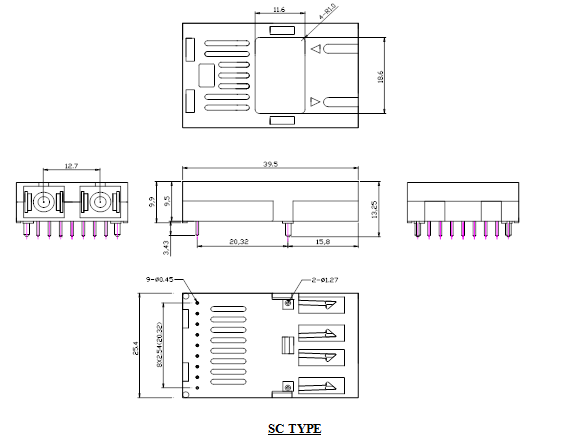

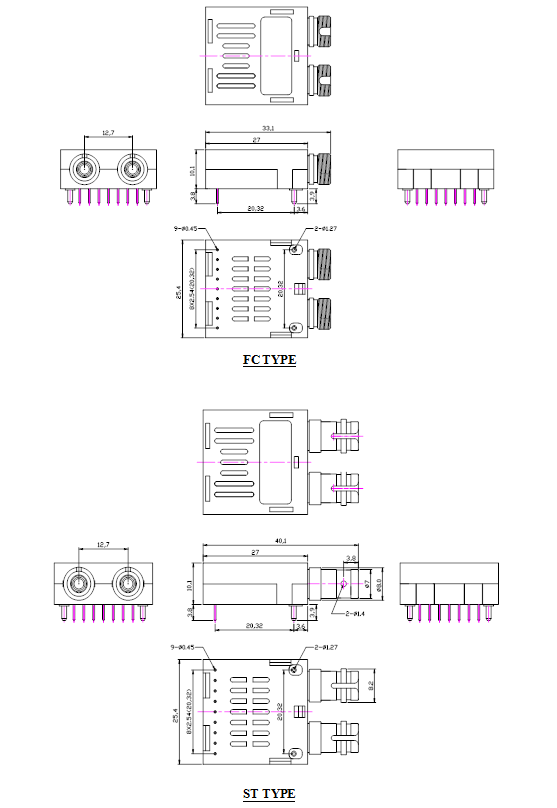

Module Outline Drawing

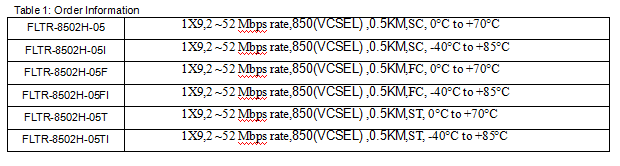

Ordering information
注：本产品有全国产化型号可选
本产品为光�？�1x9系列 ，仅展示部分参数 ，如有需要 ，请联系大宝娱乐。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
