2X5 SFF Multimode Transceiver
Description
2X5 SFF Multimode Transceiver
FEATURES
● Single 3.3 Volt DC supply
● 2x5 SFF Package Outline
● LC duplex connector
● Differential LVPECL/CML inputs
● Differential CML outputs
● 300 m links with 62.5/125 mm MMF Cables
● 500 m links with 50/125 mm MMF Cables
● LVTTL Signal Detect output
● Operating case temperature:
FTAF-8512-02 0 ℃to 70℃
FTAF-8512-02I -40 ℃to 85℃
● Class 1 laser product complies with EN 60825-1
● RoHs Compliance
APPLICATIONS
● SONET/SDH Equipment Interconnect
● Gigabit Ethernet 1.25 Gb/s Links

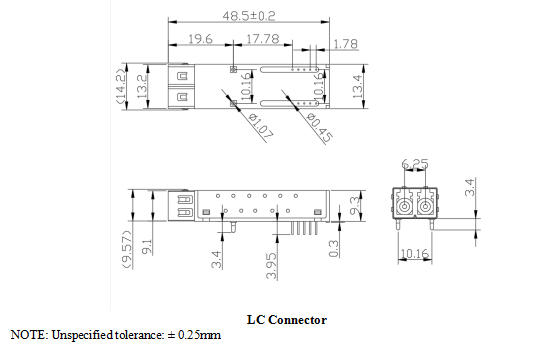

PACKAGE OUTLINE
Ordering Information
|
P/No. |
Package |
Bit Rate (Mb/s) |
Dist. (km) |
Wavelength (nm) |
Volt. (V) |
TX Power (dBm) |
RX Sens (dBm) |
Temp. (℃) |
|
FTAF-8512-02 |
LC |
1250 |
0.5 |
850 |
3.3 |
-6 to 0 |
-17 |
0~70 |
|
FTAF-8512-02I |
LC |
1250 |
0.5 |
850 |
3.3 |
-6 to 0 |
-17 |
-40~85 |
注：本产品有全国产化型号可选
本产品为FTAF系列，仅展示部分参数，如有需要，请联系大宝娱乐。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
