155Mbps 2×10 SFF MM DDM Transceiver Module

Product Description
FTBF-M1303-02Dxx series of transceiver modules are the perfect solution for high-speed communication networks.FTBF-M1303-02Dxx series modules provide reliability, robust and high performance to Telecom, Datacom, and other data communication applications.
FTBF-M1303-02Dxx Small Form Factor (SFF) transceivers comply with the 2×10 standard package defined by the Small Form Factor Multi-Sourcing Agreement (MSA). The transceivers are RoHS compliant and lead-free per Directive 2002/95/EC5.
FTBF-M1303-02Dxx SFF transceivers support data rates from 100Mbps to 200Mbps.FTBF-M1303-02Dxx SFF module has been designed to provide good immunity to RF electromagnetic fields and excellent EMC/EMI performance.

Product Features
¡ñ 1310nm wavelength Laser Transmitter
¡ñ Up to 2Km on 62.5/125μm MMF
¡ñ Single 3.3V power supply
¡ñ Digital diagnostic monitoring
¡ñ Standard 2×10 pin footprint (MSA Compliant)
¡ñ Operating Temperature Range
      Standard : 0 to +70°C
      Industrial : -40 to +85°C
¡ñ Duplex LC connector
¡ñ LVPECL Signal Input / Output
¡ñ TTL Signal Detect
¡ñ Low power dissipation
¡ñ Excellent EMI and ESD protection
¡ñ Compliant with Small Form Factor (SFF) Transceivers Multi-Sourcing Agreement (MSA)

Application
¡ñ ATM
¡ñ Fiber channel
¡ñ SONET/SDH
¡ñ Fast Ethernet
¡ñ Other optic link

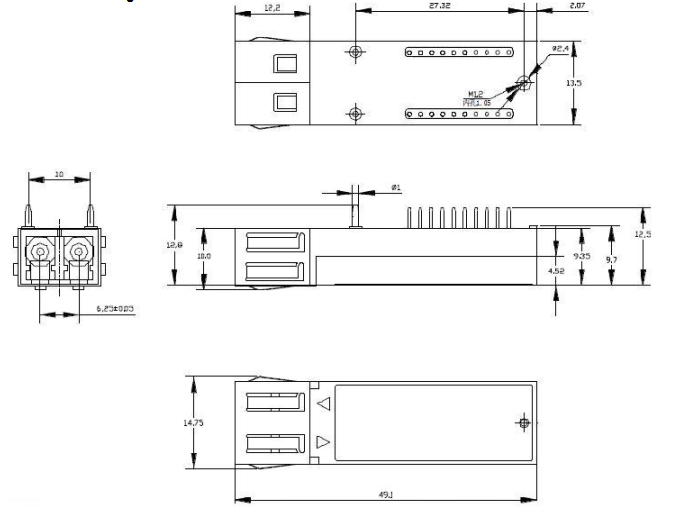

Mechanical Specifications

Ordering information
