6Gbps Single Mode Mini SFF BIDI Pigtail Transceiver

0.0/5 rating (0 votes)

Description

6Gbps Single Mode Mini SFF BIDI Pigtail Transceiver

FEATURES
● Low Profile Design—8mm max. height
● Surface mount I/O pins for high speed signal integrity
● All metal body, screw mount
● Industrial Temp range, vibration tolerant design
● 1-Fiber Bi-Directional Mini SFF Pigtail Transceiver
● Super High Isolation Between Two Wavelengths
● Single 3.3V Power Supply
● Operating Temperature
Standard : 0℃~+70℃ (FTMF-B2760-02-xx / FTMF-B3360-02-xx)
Industrial: -40℃~+85℃ (FTMF-B2760-02I-xx / FTMF-B3360I-02-xx)

APPLICATIONS
● Rate Agile
● Fiber Channel Links

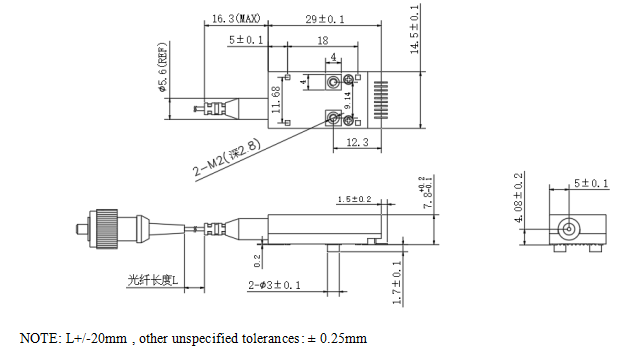

Outline Specification

Ordering Information

P/No.	Package	Bit Rate (Gb/s)	Dist. (km)	Wavelength (nm)	Volt. (V)	TX Power (dBm)	RX Sens (dBm)	Temp. (℃)
FTMF-B2760-02-xx	FC Pigtail	6	2	TX1270/RX1330	3.3	-6 to 0	-14	0 ~70
FTMF-B3360-02-xx				TX1330/RX1270
FTMF-B2760-02I-xx	FC Pigtail	6	2	TX1270/RX1330	3.3	-6 to 0	-14	-40 ~85
FTMF-B3360-02I-xx				TX1330/RX1270

备注：接口可��；“xx”体现尾纤长度，尾纤长度可定制。

注：本产品有全国产化型号可选

本产品为FTMF系列，仅展示部分参数，如有需要，请联系大宝娱乐。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
