25Gbps SFP28 Bi-Directional Transceiver,10Km(FTCS-B3325G-10Dxx)
Description
Description
The F-tone Networks FTCS-B3325G-10Dxx is designed for Bi-directional 25G serial optical data coummunications by using 1330nm transmitter and 1270nm receiver. It is a high performance module for 25G Ethernet and Option 10 CPRI applications which operate up to 10km. This module incorporates F-tone Networks proven circuit and technology to provide reliable long life, high performance, and consistent service.
Features
● Hot-pluggable SFP28 form factor
● Up to 25Gbps data rate
● Maximum link length of 10km
● Single LC receptacle,Bi-directional
● CWDM DFB laser and PIN photo-detector
● 1330nm Tx/1270nm Rx
● Internal CDR on both Transmitter and Receiver channel
● Single 3.3V power supply
● Power dissipation < 1.2W
● Digital diagnostics functions are available via the I2C interface
● RoHS-6 compliant
● Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
● 25GBASE-LR Ethernet
● CPRI Option 10

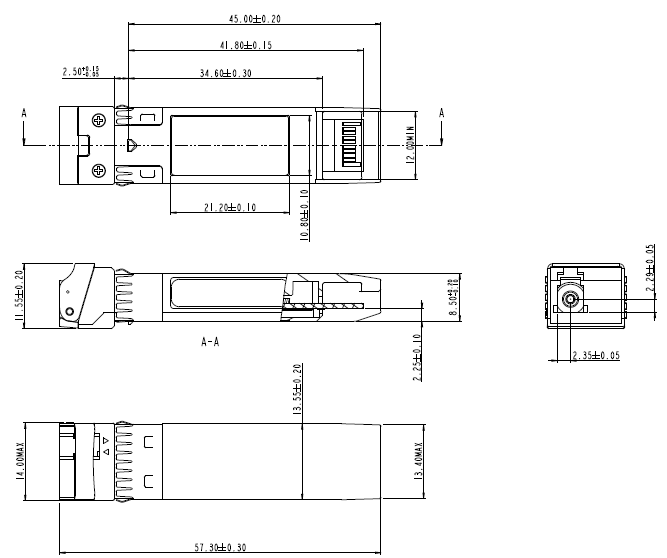

Mechanical Dimensions
Ordering information
|
Part Number |
Product Description |
|
FTCS-B3325G-10D |
25Gbps, 1330nm Tx/1270nm Rx; SFP28, 10km, DDM 0ºC ~ +70ºC |
|
FTCS-B3325G-10DI |
25Gbps, 1330nm Tx/1270nm Rx; SFP28, 10km, DDM -40ºC ~ +85ºC |
本产品为25G~400G高速光�？橄盗�，如有需要，请联系大宝娱乐。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
