2.5G RJ DDM Transceiver Module
Description
2.5G RJ DDM Transceiver Module
Product Description
F-tone Networks’s FTRC-xx24-xxDxx series of transceiver modules are the perfect solution for high -speed communication networks.These transceiver modules support data rates up to 2.5Gbps. The module is fully compliant with Small Form-Factor Transceiver.These transceiver modules provide the system designer with Telecom, Datacom, and other Fibre Channel applications.
Product Features
● DFB Laser Diode Transmitter
● Up to 60 Km on 9/125μm SMF
● 3.3Vpower supply
● LC duplex optical interface
● Digital diagnostic monitor interface compatible with SFF-8472
● CML Differential Inputs and CML Outputs and LVTTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard：0 to +70℃) or (Industrial： -40°C to +85°C)
Application
● Fiber Channel Switch Infrastructure
● STM16 Optical Interface
● SONET / SDH Switch Infrastructure
● Other optic links

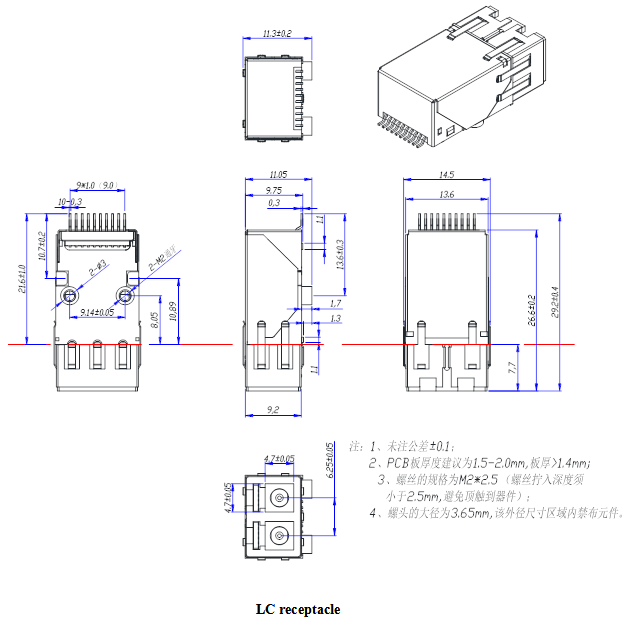

Module Outline Drawing（Units in mm)
Order Information
|
Type |
Fiber Type |
Wavelength(nm) |
Fiber Length(Km) |
|
FTRC-1324-10Dxx |
SM |
1310(DFB) |
10 |
|
FTRC-1324-20Dxx |
SM |
1310(DFB) |
20 |
|
FTRC-1524-10Dxx |
SM |
1550(DFB) |
10 |
|
FTRC-1524-20Dxx |
SM |
1550(DFB) |
20 |
|
FTRC-1524-40Dxx |
SM |
1550(DFB) |
40 |
|
FTRC-1524-60Dxx |
SM |
1550(DFB) |
60 |
本产品为FTRC系列，仅展示部分参数，如有需要，请联系大宝娱乐。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
