10Gbps Single Mode SFP+ Transceiver (10Km)
Description
10Gbps Single Mode SFP+ Transceiver (10Km)
FEATURES
● Hot-Pluggable SFP+ Footprint LC Optical Transceiver
● Small Form-Factor Pluggable (SFP+) MSA compatible
● SFF-8472 Digital Diagnostic Function
● AC/AC Coupling according to MSA
● Distance up to 10 km
● 1310nm DFB transmitter, PIN photo-detector
● Single +3.3 V Power Supply
● RoHS Compliant
● Class 1 Laser International Safety Standard IEC-60825 Compliant
● Operating case temperature:
FTCS-131X-10D : 0 ℃to 70℃
FTCS-131X-10DI : -40 ℃to 85℃
APPLICATIONS
● 10GBASE-LR/LW 10G Ethernet

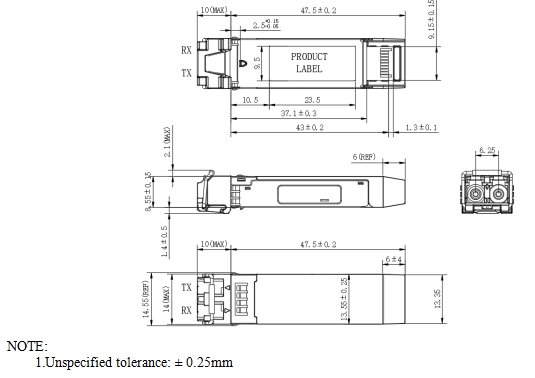

Mechanical Specifications
Ordering information
|
P/No. |
Package |
Bit Rate(Gb/s) |
Dist.(km) |
Wavelength(nm) |
Volt.(V) |
TX Power(dBm) |
RX Sens(dBm) |
Temp.(℃) |
|
FTCS-131X-10D |
LC |
10.3 |
10 |
1310 |
3.3 |
-8.2 to 0.5 |
-14.4 |
0 ~70 |
|
FTCS-131X-10DI |
LC |
10.3 |
10 |
1310 |
3.3 |
-8.2 to 0.5 |
-14.4 |
-40 ~85 |
注：本产品有全国产化型号可选
本产品为SFP+系列光�？�，如有需要，请联系大宝娱乐。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
