HDMI LC BIDI SFP TRANSCEIVER

Description£º
The FT-HDMI-10KM-A have a serializer to transform the 4x TMDS signals into a10.3Gb/s serial high-speed data, and converted into light pulses by optical transmitter, it’s wavelength is 1310nm;. The FT-HDMI-10KM-A also has an optical receiver to receive the low data rate optical pulses signal with 1550nm wavelength; its data rate is 250Mb/s.
The FT-HDMI-10KM-B have a optical receiver and a de-serializer inside, The optical receiver convert the 1310nm10.3Gb/s s optical pulse signal into electronic serial data, and the De-serializer transform the high-speed serial data to 4x TMDS signals. The FT-HDMI-10KM-B also has an optical Transmitter to transmit a 250Mb/s serial data with 1550nm wavelength.

Feature:
¡ñ SFP LC BIDI Package£»
¡ñ Hot pluggable;
¡ñ 1xLC optical connector;
¡ñ 1310nmDFB-LD for10.3Gb/s and 1550nm FP-LD for 250Mb/s ;
¡ñ Support Rs232 option
¡ñ Distance up to 10km over SM fiber ;
¡ñ Single +3.3V power suply ;
¡ñ Operation Tem. 0¡æ~+70¡æ;
¡ñ Compliant with ROHS;

Application:
¡ñ DVI/HDMI High-Definition Video Fiber transmission system£»

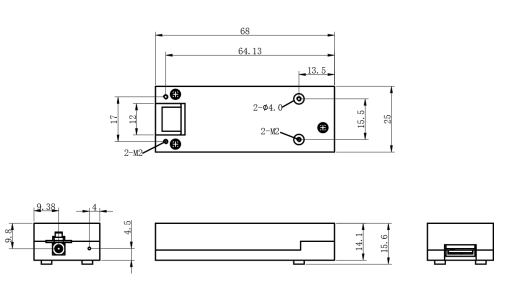

Outline Specification

Ordering Information

Note1:Due to the sensitivity limitation in the high speed direction, the link budget in the low speed direction is at least 15 DBm

×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡
±¾²úÆ·½öչʾ²¿·Ö²ÎÊý
£¬ÈçÓÐÐèÒª
£¬ÇëÁªÏµ´ó±¦ÓéÀÖ
¡£

Important Notice

Performance figures,data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone before they become applicable to any particular order or contract. In accordance with the F-tone policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone or others. Further details are available from any F-tone sales representative.
