10Gbps 220m Multi Mode Datacom SFP+ Transceiver

10Gbps 220m Multi Mode Datacom SFP+ Transceiver

0.0/5 rating (0 votes)

Description

10Gbps 220m Multi Mode Datacom SFP+ Transceiver

Product description
F-tone Networks’ SFP+ LRM is an optical transceiver module for transmission at 1310nm over legacy multi mode fiber. Supporting 10GBASE-LRM Ethernet standard make it ideally suited for 10G datacom. Its very low power consumption and its excellent EMI performance allow system design with high port density. The small form factor integrates a 1310nm Fabry-Perot (FP) laser in an LC package and a linear multimode PIN receiver. F-tone Networks module is lead free, RoHS compliant and is designed and tested in accordance with industry safety standards.
The F-tone Networks FTCS-M131X-02DXX SFP+ transceiver is a linear-interface transceiver that enables, in conjunction with an Electronic Dispersion Compensation (EDC) on the host board, an IEEE802.3aq 10GBASE-LRM compliant link. The host board EDC provides correction for the severe modal dispersion that may occur during propagation through multimode fiber links, including legacy installed FDDI multimode fiber (see IEEE802.3aq for detailed information regarding fiber coverage).

Features
¡ñ Supports Up to 10.3Gbps bit rates
¡ñ Transmission distance up to 220m (OM1 fiber)
¡ñ Hot Pluggable SFP+ footprint
¡ñ 1310nm FP transmitter, PIN photo-detector
¡ñ Digital Status monitoring Interface
¡ñ Duplex LC connector
¡ñ RoHS compliant and Lead Free
¡ñ Metal enclosure for lower EMI
¡ñ Single 3.3V power supply
¡ñ Power dissipation < 1W
¡ñ Compliant with FC-PI-4 800-Mx-SN-I, SFF-8431 , SFF-8432 and SFF-8472
¡ñ Operating case temperature:
Standard : 0 to +70°C
Industrial : -40 to +85°C

Applications
¡ñ 10GBASE-LRM 10G Ethernet
¡ñ Legacy FDDI multimode links

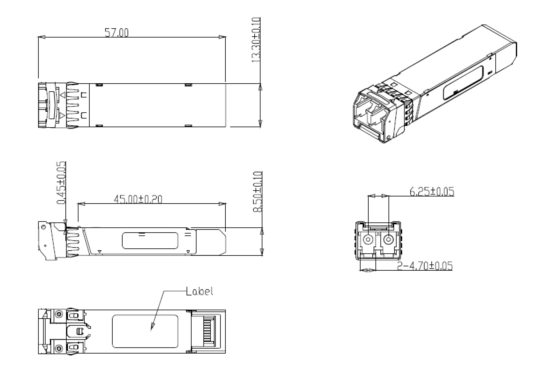

Mechanical Specifications

51

Ordering information

Part Number

Product Description

FTCS-M131X-02D

1310nm, 10.3125Gpbs, Multi Mode  220m,   0ºC ~ +70ºC

FTCS-M131X-02DI

1310nm, 10.3125Gpbs, Multi Mode  220m,   -40 to +85°C













×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡
±¾²úƷΪSFP+ϵÁйâÄ£¿é£¬ÈçÓÐÐèÒª£¬ÇëÁªÏµ´ó±¦ÓéÀÖ¡£

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
