10Gb/s 80km SFP+ DWDM ¹âÄ £¿é

F-tone Networks’s FTCS-Hxxx1X-80D SFP+ is specifically designed for the high performance integrated duplex data transmission over single mode optical fiber. This transceiver module is compliant with Enhanced Small Form Factor Pluggable Module SFP+ Multisource Agreement (SFF-8431).This transceiver type is specifically optimized for transport of serial data from 9.95Gb/s to 11.3Gb/s bit rates.

Product Features
¡ñ Duplex LC Connector
¡ñ Support hot-pluggable
¡ñ Metal with lower EMI
¡ñ Excellent ESD protection
¡ñ RoHS Compliant and Lead-Free
¡ñ Compliant with IEEE 802.3ae
¡ñ ITU-T G.959,G.691 and G.692 compliant
¡ñ Temperature-stabilized DWDM-rated EML transmitter and APD ROSA
¡ñ Up to 80KM for single mode fiber
¡ñ 50GHz ITU Grid, C Band
¡ñ GR-253-CORE compliant
¡ñ Compliant with SFP+ MSA: SFF-8431 Rev4.1
¡ñ Digital diagnostic compatible with SFF-8472 Rev11.0
¡ñ Single 3.3V power supply and Low power dissipation <1.8W( 0~ 70¡æ) £¬ <1.4W(25¡æ)

Applications
¡ñ DWDM 80km point to point links:
¡ñ Fibre Channel 8.5G and 10G
¡ñ 10G Ethernet
¡ñ ITU-T G.698.1 DS100S1-2Dz(C)

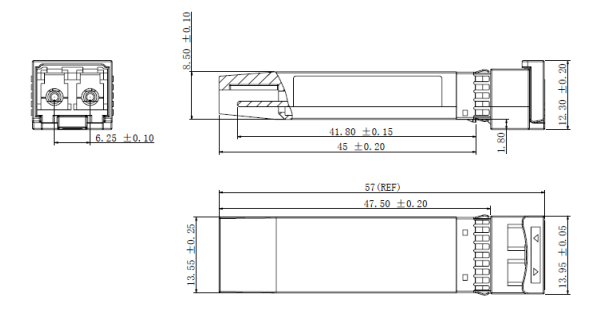

Mechanical Dimensions

45

Part Number Ordering Information

Product Selection—FTCS-Hxxx1X-80D-50GHZ

Product Code

ITU channel

Frequency (THz)

Center Wavelength (nm)

FTCS-H6101X-80D

61.0

196.1

1528.77

FTCS-H6051X-80D

60.5

196.05

1529.163

FTCS-H6001X-80D

60.0

196

1529.553

FTCS-H5951X-80D

59.5

195.95

1529.944

FTCS-H5901X-80D

59.0

195.9

1530.334

FTCS-H5851X-80D

58.5

195.85

1530.725

FTCS-H5801X-80D

58.0

195.8

1531.116

FTCS-H5751X-80D

57.5

195.75

1531.507

FTCS-H5701X-80D

57.0

195.7

1531.898

FTCS-H5651X-80D

56.5

195.65

1532.29

FTCS-H5601X-80D

56.0

195.6

1532.681

FTCS-H5551X-80D

55.5

195.55

1533.073

FTCS-H5501X-80D

55.0

195.5

1533.465

FTCS-H5451X-80D

54.5

195.45

1533.858

FTCS-H5401X-80D

54.0

195.4

1534.25

FTCS-H5351X-80D

53.5

195.35

1534.643

FTCS-H5301X-80D

53.0

195.3

1535.036

FTCS-H5251X-80D

52.5

195.25

1535.429

FTCS-H5201X-80D

52.0

195.2

1535.822

FTCS-H5151X-80D

51.5

195.15

1536.216

FTCS-H5101X-80D

51.0

195.1

1536.609

FTCS-H5051X-80D

50.5

195.05

1537.003

FTCS-H5001X-80D

50.0

195

1537.397

FTCS-H4951X-80D

49.5

194.95

1537.792

FTCS-H4901X-80D

49.0

194.9

1538.186

FTCS-H4851X-80D

48.5

194.85

1538.581

FTCS-H4801X-80D

48.0

194.8

1538.976

FTCS-H4751X-80D

47.5

194.75

1539.371

FTCS-H4701X-80D

47.0

194.7

1539.766

FTCS-H4651X-80D

46.5

194.65

1540.162

FTCS-H4601X-80D

46.0

194.6

1540.557

FTCS-H4551X-80D

45.5

194.55

1540.953

FTCS-H4501X-80D

45.0

194.5

1541.349

FTCS-H4451X-80D

44.5

194.45

1541.746

FTCS-H4401X-80D

44.0

194.4

1542.142

FTCS-H4351X-80D

43.5

194.35

1542.539

FTCS-H4301X-80D

43.0

194.3

1542.936

FTCS-H4251X-80D

42.5

194.25

1543.333

FTCS-H4201X-80D

42.0

194.2

1543.73

FTCS-H4151X-80D

41.5

194.15

1544.128

FTCS-H4101X-80D

41.0

194.1

1544.526

FTCS-H4051X-80D

40.5

194.05

1544.924

FTCS-H4001X-80D

40.0

194

1545.322

FTCS-H3951X-80D

39.5

193.95

1545.72

FTCS-H3901X-80D

39.0

193.9

1546.119

FTCS-H3851X-80D

38.5

193.85

1546.518

FTCS-H3801X-80D

38

193.8

1546.92

FTCS-H3751X-80D

37.5

193.75

1547.316

FTCS-H3701X-80D

37.0

193.7

1547.715

FTCS-H3651X-80D

36.5

193.65

1548.115

FTCS-H3601X-80D

36.0

193.6

1548.515

FTCS-H3551X-80D

35.5

193.55

1548.915

FTCS-H3501X-80D

35.0

193.5

1549.315

FTCS-H3451X-80D

34.5

193.45

1549.715

FTCS-H3401X-80D

34.0

193.4

1550.116

FTCS-H3351X-80D

33.5

193.35

1550.517

FTCS-H3301X-80D

33.0

193.3

1550.918

FTCS-H3251X-80D

32.5

193.25

1551.319

FTCS-H3201X-80D

32.0

193.2

1551.721

FTCS-H3151X-80D

31.5

193.15

1552.122

FTCS-H3101X-80D

31.0

193.1

1552.524

FTCS-H3051X-80D

30.5

193.05

1552.926

FTCS-H3001X-80D

30.0

193

1553.329

FTCS-H2951X-80D

29.5

192.95

1553.731

FTCS-H2901X-80D

29.0

192.9

1554.134

FTCS-H2851X-80D

28.5

192.85

1554.537

FTCS-2801X-80D

28.0

192.8

1554.94

FTCS-H2751X-80D

27.5

192.75

1555.343

FTCS-H2701X-80D

27.0

192.7

1555.747

FTCS-H2651X-80D

26.5

192.65

1556.151

FTCS-H2601X-80D

26.0

192.6

1556.555

FTCS-H2551X-80D

25.5

192.55

1556.959

FTCS-H2501X-80D

25.0

192.5

1557.363

FTCS-H2451X-80D

24.5

192.45

1557.768

FTCS-H2401X-80D

24.0

192.4

1558.173

FTCS-H2351X-80D

23.5

192.35

1558.578

FTCS-H2301X-80D

23.0

192.3

1558.983

FTCS-H2251X-80D

22.5

192.25

1559.389

FTCS-H2201X-80D

22.0

192.2

1559.794

FTCS-H2151X-80D

21.5

192.15

1560.2

FTCS-H2101X-80D

21.0

192.1

1560.606

FTCS-H2051X-80D

20.5

192.05

1561.013

FTCS-H2001X-80D

20.0

192

1561.419

FTCS-H1951X-80D

19.5

191.95

1561.826

FTCS-H1901X-80D

19.0

191.9

1562.233

FTCS-H1851X-80D

18.5

191.85

1562.64

FTCS-H1801X-80D

18.0

191.8

1563.047

FTCS-H1751X-80D

17.5

191.75

1563.455

FTCS-H1701X-80D

17.0

191.7

1563.863













×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡
±¾²úƷΪDWDM SFP+ϵÁйâÄ £¿é £¬ÈçÓÐÐèÒª £¬ÇëÁªÏµ´ó±¦ÓéÀÖ¡£

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
