80KM DWDM SFP+ ¹âÄ£¿é

Description
F-tone Networks SFP+ZR DWDM Transceiver is a “Limiting module”, designed for 10G Ethernet, and 2G/4G/ 8G/10G Fiber- Channel applications.The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

Features
¡ñ Compliant with SFF-8431,SFF-8432 and IEE802.3ae
¡ñ 10GBASE-ZR, and 2G/4G/ 8G/10G Fiber Channel applications.
¡ñ Suitable for use in 100GHz channel spacing DWDM systems
¡ñ Cooled EML transmitter and APD receiver
¡ñ link length up to 80km
¡ñ Low Power Dissipation 1.4W Typical (Maximum:2W)
¡ñ Operating Case Temperature
     Standard : -5 to +70°C
     Industrial : -40 to +85°C
¡ñ Single 3.3V power supply
¡ñ Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power
¡ñ For the OBSAI application, the rates are 6.144Gb/s, 3.072 Gb/s, 1.536 Gb/s and 0.768 Gb/s.
¡ñ For the CPRI application, the rates are 6.144Gb/s, 3.072 Gb/s, 2.4576 Gb/s, 1.2288 Gb/s, 0.6144 Gb/s.
¡ñ RoHS6 compliant and lead free

Applications
¡ñ 10G Ethernet (with/without FEC)
¡ñ 10G Fiber Channel

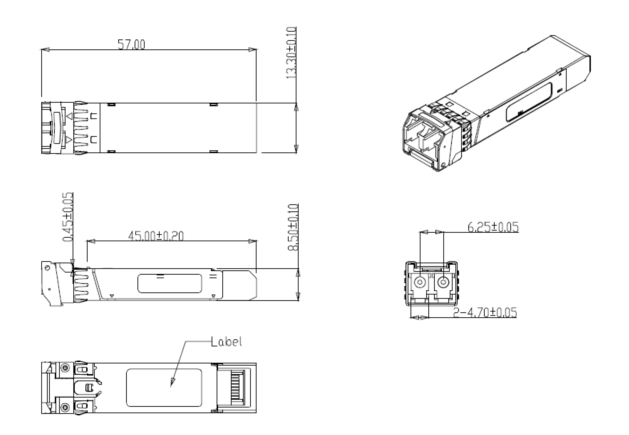

Mechanical Dimensions

Part Number Ordering Information
