10Gb/s SFP+ DWDM 80km Transceiver

Description
FTCS-Dxx1X-DZ02I SFP+ transceiver is designed for use in 10-Gigabit Ethernet links up to 80km over single mode fiber. The module consists of DWDM EML Laser, APD and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. This module is designed for single mode fiber and operates at a nominal wavelength of 100GHz ITU Grid, C Band DWDM wavelength.
FTCS-Dxx1X-DZ02I transceivers provide a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, and received optical power and transceiver supply voltage. It also defines a sophisticated system of alarm and warning flags, which alerts end-users when particular operating parameters are outside of a factory set normal range.
The SFP+ MSA defines a 256-byte memory map in EEPROM that is accessible over a 2-wire serial interface at the 8 bit address 1010000X (A0h). The digital diagnostic monitoring interface makes use of the 8 bit address 1010001X (A2h), so the originally defined serial ID memory map remains unchanged.

Features
¡ñ Up to 11.3Gb/s data links
¡ñ DWDM EML transmitter and APD receiver
¡ñ 100 GHz ITU channel spacing with integrated wavelength locker
¡ñ Up to 80km on 9/125µm SMF
¡ñ Hot-pluggable SFP+ footprint
¡ñ Duplex LC/UPC type pluggable optical interface
¡ñ RoHS-10 compliant and lead-free
¡ñ Support Digital Monitoring interface
¡ñ Single +3.3V power supply
¡ñ Compliant with SFF+MSA and SFF-8472
¡ñ Metal enclosure, for lower EMI
¡ñ Meet ESD requirements, resist 8KV direct contact voltage
¡ñ Case operating temperature
       Industrial: -50 ~ +70¡æ

Applications
¡ñ 10GBASE-ZR/ZW & 10G Ethernet
¡ñ SDH STM64
¡ñ Other Optical Links

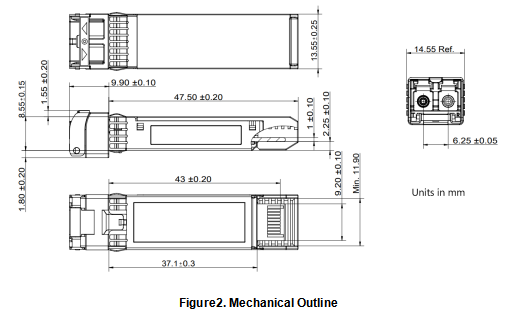

Mechanical Dimensions

Part Number Ordering Information
